KINGONE
BULL 12.0i
电动绞盘 · PREMIUM BULL 12.0i
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Series wound DC motor with high torque and excellent speed.
- Three-stage planetary gear set provides high transmission efficiency.
- Patent powerful double-cone brake with zero sliding distance.
- Patent clutch is easy to operate when rolling in and out.
- Waterproof rating: IP68
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Title | BULL 12.0i |
|---|---|
| Line Pull | 1,2000lbs/5,442kgs |
| Motor | DC 12V/24V series wound |
| Gearing | Three stage planetary |
| Brake | 100% full load double cone braking |
| Gear Ratio | 216:1 |
| Wire Rope | 3/8"×90" (9.5mm×27m) |
| Synthetic Rope | 3/8"×90" (9.5mm×27m) |
| Dimensions | 24.4" L×6.29" D×11.51" H (620mm L×160mm D×292.5mm H) |
| Drum Diameter | 63.5mm×229mm |
Packaging
| Packaging | BULL 12.0i |
|---|---|
| Winch Weight | 47.2kgs/104lbs |
| Gross Weight | 48.5kgs/107lbs |
| Box Dimension | 655×198×445mm(25.8〃x7.6〃x17.5〃) |
性能数据
Line Pull
| Layer of Wire Rope | Max Line Pull |
|---|---|
| 1 | 1,2000lbs/5,442kgs |
| 2 | 9,789lbs/4,445kgs |
| 3 | 8,273lbs/3,760kgs |
| 4 | 7,199lbs/3,255kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 29.3FPM/9MPM | 60 | 45 |
| 4,000lbs/1,814kgs | 11.5FPM/3.5MPM | 120 | 80 |
| 8,000lbs/3,650kgs | 8.6FPM/2.6MPM | 190 | 155 |
| 1,2000lbs/5,442kgs | 5.9FPM/1.8MPM | 280 | 185 |

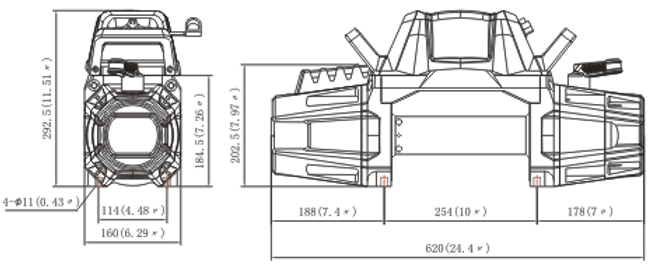

外形尺寸
