KINGONE
BULL 9.5I SR
电动绞盘 · PREMIUM BULL 9.5I SR
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,500 lbs（4,309 kgf）
- Series wound DC motor with high torque and excellent speed.
- Three-stage planetary gear set provides high transmission efficiency.
- Patent powerful double-cone brake with zero sliding distance.
- Patent clutch is easy to operate when rolling in and out.
- Waterproof rating: IP68
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Specifications | BULL 9.5i SR |
|---|---|
| Drum Diameter | 2.5''×9''(63.5mm×229mm) |
| Line Pull | 9,500lbs/4,309kgs |
| Motor | DC 12V/24V series wound |
| Gearing | Three stage planetary |
| Gear Ratio | 156:1 |
| Brake | 100% full load double cone braking |
| Wire Rope Size | 11/32"×85" (8.7mm×26m) |
| Wire Rope Type | Aircraft A7×19 |
| Synthetic Rope Size | 11/31"×90" (9mm×27.4m) |
Packaging
| Packaging | BULL 9.5i SR |
|---|---|
| Winch Weight | 36.2kgs/79.8lbs |
| Gross Weight | 37.5kgs/82.7lbs |
| Box Dimension | 655×193×445mm(25.8''×7.6''×17.5'') |
性能数据
Line Pull
| Bull 9.5 Layer of Wire Rope | Max Line Pull |
|---|---|
| 1 | 9,500lbs/4,309kgs |
| 2 | 7,800lbs/3,500kgs |
| 3 | 6,550lbs/2,977kgs |
| 4 | 5,700lbs/2,578kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw (12V) | AMP Draw (24V) |
|---|---|---|---|
| No Load | 64FPM/19.5MPM | 60 | 40 |
| 2,000lbs/907kgs | 15.4FPM/4.7MPM | 150 | 106 |
| 6,000lbs/2,722kgs | 11.2FPM/3.4MPM | 246 | 187 |
| 9,500lbs/4,309kgs | 8.2FPM/2.5MPM | 370 | 259 |

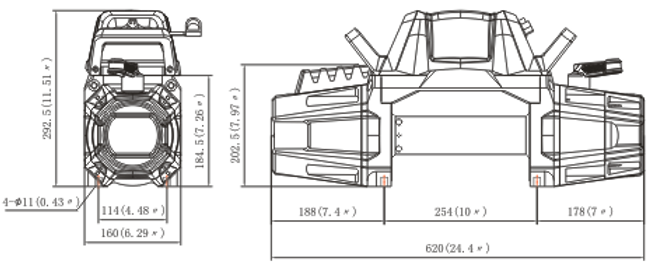

外形尺寸
