KINGONE
TDS 20.0C SR
电动绞盘 · STANDARD TDS 20.0C SR
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 20,000 lbs（9,072 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Specification | Text |
|---|---|
| Line Pull | 9,072kgs/20,000lbs |
| Motor | 12V/6.2HP 24V/4.0HP |
| Gear Train | Three stage |
| Gear Ratio | 315:1 |
| Freespooling Clutch | Rotating ring gear |
| Drum Size | Φ3.5"×8.1"(Φ89mm×206mm) |
| Wire Rope Type | Aircraft A7×19 |
| Synthetic Rope Size | Φ8/17"×83'(Φ12mmx25m) |
| Wire Rope Size | Φ8/17"×83'(Φ12mm×25m) |
Packaging
| Packaging | TDS-20C SR |
|---|---|
| Winch Weight | 50.3kgs/110.7lbs |
| Gross Weight | 57.6kgs/126.7lbs |
| Box Dimension | 710×270×420 mm(28"×10.6"×16.5") |
性能数据
Line Pull
| Layer of Synthetic Rope | Max Line Pull |
|---|---|
| 1 | 20,000lbs/9,072kgs |
| 2 | 15,380lbs/6,976kgs |
| 3 | 13,100lbs/5,942kgs |
| 4 | 11,300lbs/5,125kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 26.2FPM/8MPM | 60 | 30 |
| 2,000lbs/907kgs | 23.3FPM/4.2MPM | 100 | 60 |
| 4,000lbs/1,814kgs | 10.5FPM/3.19MPM | 125 | 85 |
| 6,000lbs/2,721kgs | 9.2FPM/2.8MPM | 155 | 110 |
| 8,000lbs/3,628kgs | 8.2FPM/2.5MPM | 180 | 130 |
| 10,000lbs/4,536kgs | 6.6FPM/2.0MPM | 215 | 155 |
| 12,500lbs/5,670kgs | 6.3FPM/1.92MPM | 250 | 165 |
| 14,000lbs/6,350kgs | 5.9FPM/1.79MPM | 270 | 175 |
| 16,500lbs/7,484kgs | 5.5FPM/1.67MPM | 290 | 190 |
| 18,000lbs/8,165kgs | 4.6FPM/1.41MPM | 320 | 220 |
| 19,000lbs/8,618kgs | 3.8FPM/1.16MPM | 340 | 240 |
| 20,000lbs/9,072kgs | 3.2FPM/0.97MPM | 360 | 270 |

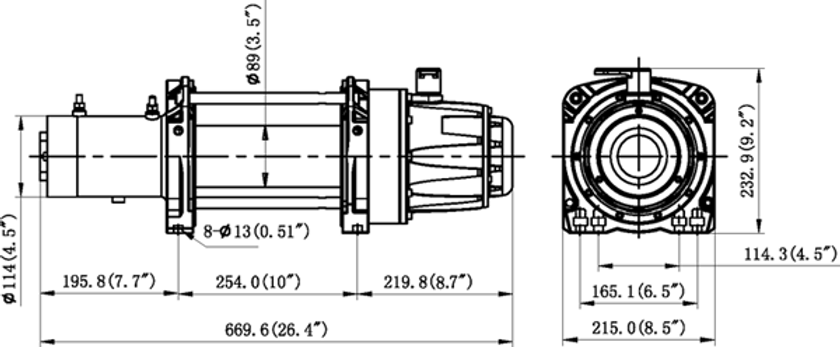

外形尺寸
