KINGONE
TDS 9.5Hi SR
电动绞盘 · STANDARD TDS 9.5Hi SR
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,500 lbs（4,309 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Specification | TDS 9.5Hi |
|---|---|
| Line Pull | 4,309kgs/9,500lbs |
| Motor | 12V/5.2HP 24V/3.2HP |
| Gear Train | Three stage |
| Gear Ratio | 156:1 |
| Freespooling Clutch | Rotating ring gear |
| Drum Size | Φ2.5"×9"(Φ63.5mm×229mm) |
| Wire Rope Size | Φ11/32"×100'(Φ8.7mm×30m) |
| Wire Rope Type | Aircraft A7×19 |
| Synthetic Rope Size | Φ11/31"×100'(Φ9.0mm×30m) |
Packaging
| Package | TDS 9.5Hi SR |
|---|---|
| Winch Weight | 34kgs/74.8lbs |
| Gross Weight | 36kgs/79.2lbs |
| Box Dimension | 647×198×410 mm(25.5"×7.8"×16.1") |
性能数据
Line Pull
| Layer of Rope | TDS 9.5 |
|---|---|
| 1 | 9,500lbs/4,309kgs |
| 2 | 7,800lbs/3,500kgs |
| 3 | 6,550lbs/2,977kgs |
| 4 | 5,700lbs/2,578kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 59FPM/18MPM | 60 | 40 |
| 2,000lbs/907kgs | 15.4FPM/4.7MPM | 150 | 116 |
| 4,000lbs/1,814kgs | 13.1FPM/4.0MPM | 187 | 168 |
| 6,000lbs/2,722kgs | 11.2FPM/3.4MPM | 246 | 220 |
| 8,000lbs/3,650kgs | 9.5FPM/2.9MPM | 314 | 260 |
| 9,500lbs/4,309kgs | 8.2FPM/2.5MPM | 370 | 300 |

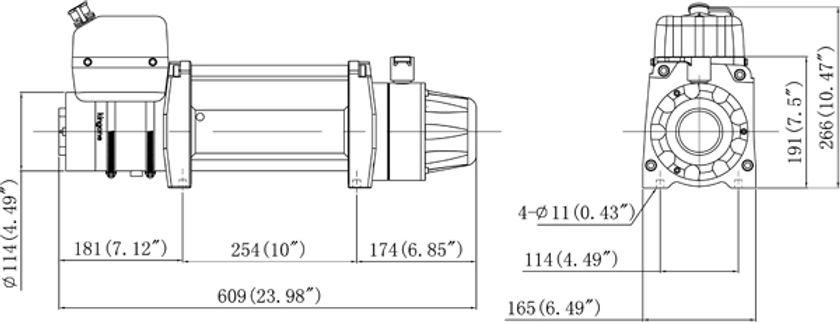

外形尺寸
