KINGONE
KWS 10.0 SR
电动绞盘 · WORM GEAR KWS 10.0 SR
适用场景与工作类型
消防救援
牵引绞盘
消防救援
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Series wound DC motor with high torque and excellent speed.
- Three-stage planetary gear set provides high transmission efficiency.
- Patent powerful double-cone brake with zero sliding distance.
- Patent clutch is easy to operate when rolling in and out.
- Waterproof rating: IP68
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Line pull: | 10,000lbs/4,536kgs | |
|---|---|---|
| Motor: | DC 12V/6.0HP DC24V/3.0HP | |
| Gearing: | Worm Gear | |
| Gear Ratio: | 424:1 | |
| Wire Rope Size: | 11×32''×100'' (8.7mm×30M) | |
| Drum | Size: | 3.5''×9'' (63.5mm×229M) |
Packaging
| Item | Value |
|---|---|
| Winch weight | 53kgs/116.8lbs |
| Gross Weight | 55kgs/121.2lbs |
| Box Dimension | 680×395×300mm(26.77''×15.55''×11.81'') |
性能数据
Line Pull
| 1 | 10,000lbs/4,536kgs |
|---|---|
| 2 | 8,157lbs/3,670kgs |
| 3 | 6,894lbs/3,127kgs |
| 4 | 6,000lbs/2,722kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 6.4FPM/21MPM | 80 | 45 |
| 4,000lbs/1,814kgs | 2.8FPM/9.2MPM | 190 | 95 |
| 6,000lbs/2,722kgs | 1.8FPM/6.0MPM | 280 | 140 |
| 8,000lbs/3,630kgs | 1.5FPM/4.8MPM | 310 | 180 |
| 10,000lbs/4,536kgs | 0.9FPM/2.7MPM | 390 | 220 |

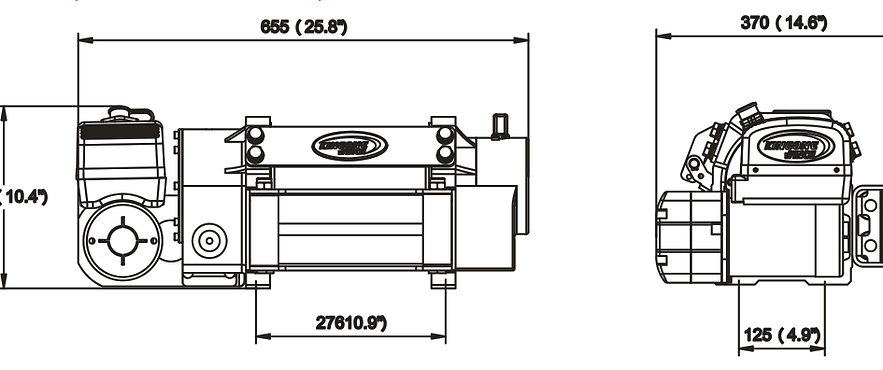

外形尺寸
