KINGONE
KWS 12.5
电动绞盘 · WORM GEAR KWS 12.5
适用场景与工作类型
消防救援
牵引绞盘
消防救援
牵引绞盘
- 额定拉力
- 12,500 lbs（5,670 kgf）
- Series wound DC motor with high torque and excellent speed.
- Three-stage planetary gear set provides high transmission efficiency.
- Patent powerful double-cone brake with zero sliding distance.
- Patent clutch is easy to operate when rolling in and out.
- Waterproof rating: IP68
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Line pull: | 12,500lbs/5,670kgs | |
|---|---|---|
| Motor: | DC 12V/6.0HP DC24V/3.0HP | |
| Gearing: | Worm Gear | |
| Gear Ratio: | 424:1 | |
| Wire Rope Size: | 3/8''×90'' (9.5mm×27M) | |
| Drum | Size: | 3.5''×9'' (89mm×229M) |
Packaging
| Item | Value |
|---|---|
| Winch weight | 66kgs/145.5lbs |
| Gross Weight | 68kgs/150lbs |
| Box Dimension | 680×395×300mm(26.77''×15.55''×11.81'') |
性能数据
Line Pull
| 1 | 12,500lbs/5,670kgs |
|---|---|
| 2 | 9,789lbs/4,445kgs |
| 3 | 8,273lbs/3,760kgs |
| 4 | 7,199lbs/3,255kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 6.3FPM/20.4FPM | 75 | 45 |
| 6,000lbs/2,722kgs | 2.8FPM/9FPM | 185 | 90 |
| 8,000lbs/3,630kgs | 1.8FPM/5.8FPM | 270 | 145 |
| 10,000lbs/4,536kgs | 1.4FPM/4.6FPM | 305 | 155 |
| 12,000lbs/5,670kgs | 1.0MPM/3.3FPM | 355 | 185 |

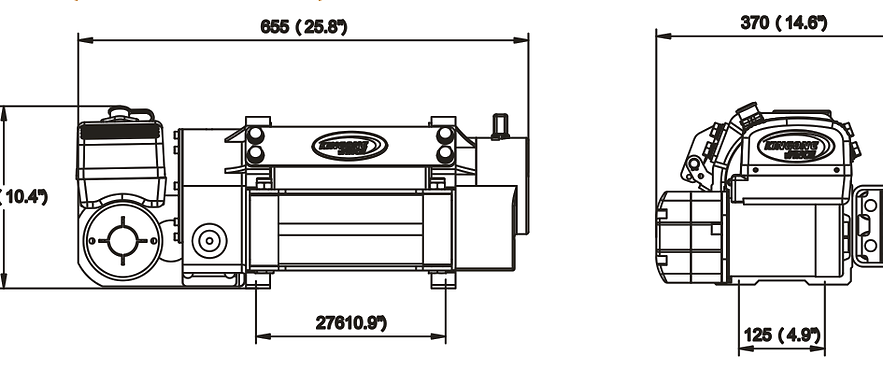

外形尺寸
