RUNVA
EH 1100
电动绞盘 · EH 1100
RUNVA EH 1100 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 1,100 lbs（499 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 1100 lbs (499 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:1.7kW/2.3hp;Output:0.9kW/1.2hp |
| 24V:Input:2.6kW/3.5hp;Output:1.2kW/1.6hp | |
| Brake | Automatic screw cone |
| Gear reduction ratio | 172:1 |
| Cable(Dia×L) | Ø3/16″×45.9’(Ø4.8mm×14m) No retated wire 19*7 optional |
| Drum size(Dia×L) | Ø2.48″×4.8″(Ø63mm×122mm) |
| Mounting bolt pattern | 6.26″×3.8″(159mm×96mm)4-M8 |
| Net weight | 32.8lbs/14.9kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 13.8(4.2) | 19amps | 1/1100 (499) |
| 400 (181) | 13.1(4.0) | 30amps | 2/963(437) |
| 800 (363) | 12.5(3.8) | 39amps | 3/857(389) |
| 1100 (499) | 11.5(3.5) | 54amps |

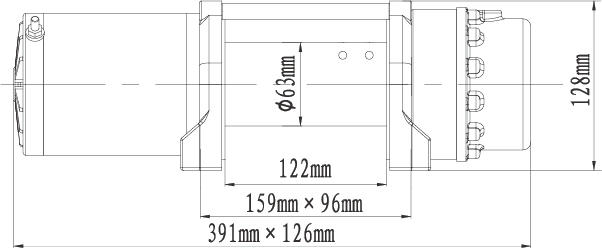

外形尺寸
