RUNVA
EH 2000
电动绞盘 · EH 2000
RUNVA EH 2000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,000 lbs（907 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 2000 lbs (907 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:4.6kW/6.1hp;Output:2.1kW/2.8hp |
| 24V:Input:6.5kW/8.7hp;Output:2.8kW/3.8hp | |
| Brake | Automatic screw cone/ratchet-paw |
| Gear reduction ratio | 228:1 |
| Cable(Dia×L) | Ø15/64″×47.6’(Ø6.0mm×14.5m) No retated wire 19*7 optional |
| Drum size(Dia×L) | Ø3.5″×4.25″(Ø89mm×108mm) |
| Mounting bolt pattern | 5.95″×4.5″(151mm×114.3mm)4-M10 |
| Net weight | 66.8lbs/30.3kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 42.0(12.8) | 75amps | 1/2000 (907) |
| 500 (227) | 29.2(8.9) | 85amps | 2/1776(805) |
| 1000 (454) | 25.6(7.8) | 100amps | 3/1597(724) |
| 1500 (680) | 22.0(6.7) | 120amps | |
| 2000 (907) | 17.1(5.2) | 150amps |

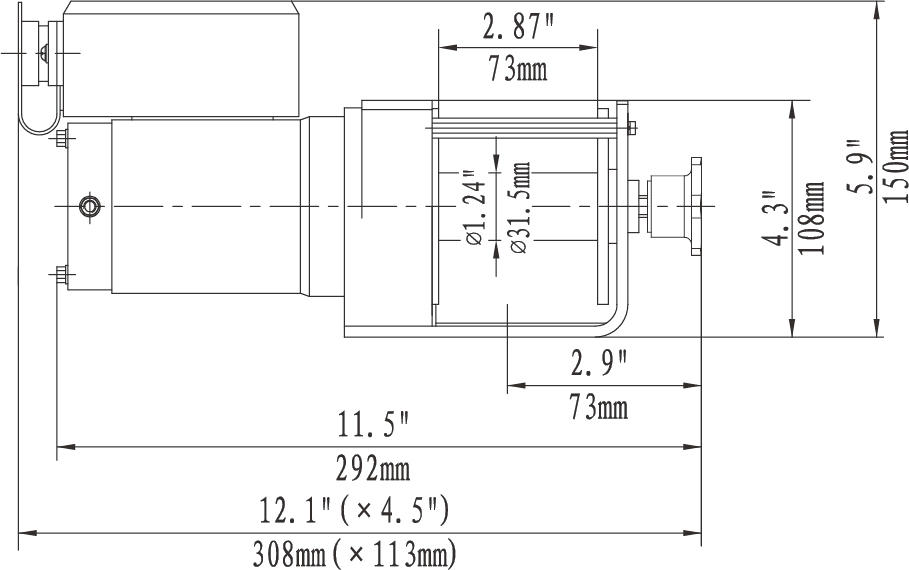

外形尺寸
