RUNVA
EWB 12500
电动绞盘 · EWB 12500
RUNVA EWB 12500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,500 lbs（5,670 kgf）
- All-new patented waterproof design meets IP67 standards
- Innovative brake inside the gearbox, offers exellent safe, reliable perfprmance
- Stainless steel rotary clutch for smooth and convenient operation
- Stainless steel out-installed screws
- Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation
- Copper connection sealed control pack with elegant appearnce
- High-efficient transmission delivers 9m/min pull-in speed and power saving
- Over-current protechtion available for safe winching
- Compression-resisted rubber hand remote control
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 12500 lbs (5670 kgs) |
|---|---|
| Motor: series wound | 12V:Input:5.9kW/7.9hp;Output:2.4kW/3.2hp |
| 24V:Input:4.8kW/6.4hp;Output:3.1kW/4.2hp | |
| Brake | kachet paw |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 228:1 |
| Clutch | Rotary |
| Waterproof: | IP67 |
| Cable(Dia×L) | Ø13/32″×83.7’(Ø10.2mm×25.5m) |
| Drum size(Dia×L) | Ø2.48″×8.5″(Ø63mm×217mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm)4-M10 |
| Net weight | 97.2lbs/44.1kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 32.8(10.0) | 75amps | 1/12500(5670) |
| 3000 (1361) | 15.7(4.8) | 190amps | 2/9776(4434) |
| 6000 (2722) | 11.5(3.5) | 285amps | 3/8026(3641) |
| 9000 (4082) | 8.2(2.5) | 360amps | 4/6808(3088) |
| 12500 (5670) | 5.2(1.6) | 490amps |

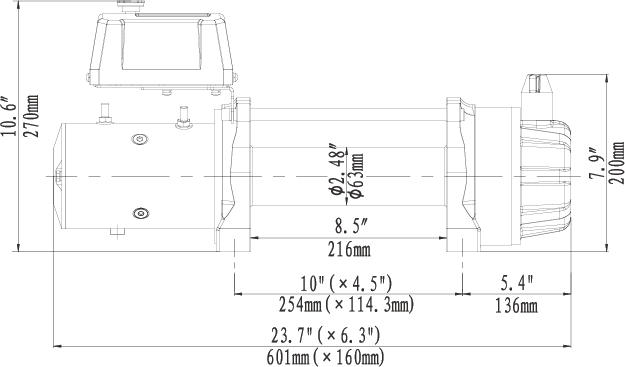

外形尺寸
