RUNVA
EWB 25000
电动绞盘 · EWB 25000
RUNVA EWB 25000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 25,000 lbs（11,340 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 25000lbs (11340 kgs) |
|---|---|
| Motor: series wound | 24V:Input:6.1kW/8.2hp; |
| Output:3.1kW/4.2hp | |
| Brake | Patented ratchet-paw |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 450:1 |
| Waterproof: | IP67 |
| Cable(Dia×L) | Ø7/13″×87’(Ø13.8mm×26.5m) |
| Drum size(Dia×L) | Ø4.72″×7.8″(Ø120mm×198mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm) 10″×7.5″(254×190.5mm) |
| Net weight | 219.4lbs/99.5kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 30.5(9.3) | 23amps | 1/25000(11340) |
| 5000(2268) | 11.1(3.4) | 90amps | 2/20724(9400) |
| 10000(4536) | 8.2(2.5) | 140amps | 3/17698(8027) |
| 15000(6804) | 6.6(2.0) | 180amps | 4/15443(7005) |
| 20000(9072) | 5.2(1.6) | 230amps | |
| 25000(11340) | 3.9(1.2) | 280amps |

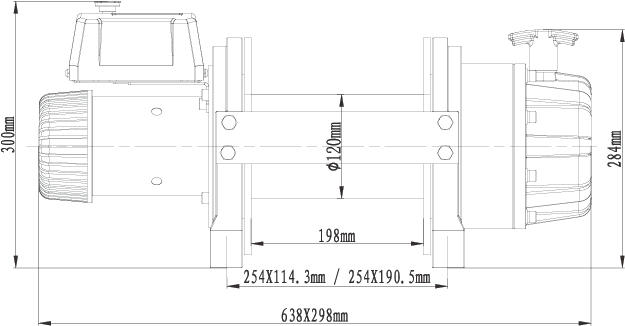

外形尺寸
