电动绞盘 · EWD 10000
RUNVA EWD 10000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Free spooling clutch
- Runva patent three stage planetary gear reducer
- Two speed and clutch and speed shift structure
- Clutch and two speed gear actions auto engagement
- Automatic screw cone braking action
- Series wound motor
- Wireless remote control available
- Remote control through control box and switch
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 10000 lbs (4536 kgs) |
|---|---|
| Motor:series wound | 12V:Input:4.3kW/5.7hp;Output:2.1kW/2.8hp |
| 24V:Input:4.1kW/5.5hp;Output:2.8kW/3.8hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 223:1(Low speed);71.6:1(High speed) |
| Clutch | Two-speed shift |
| Cable(Dia×L) | Ø3/8″×85’(Ø9.2mm×26m) |
| Drum size(Dia×L) | Ø2.48″×8.8″(Ø63mm×223mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm)4-M10 |
| Net weight | 86.0lbs/39kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 28.9(8.8) | 70amps | 1/10000(4536) |
| 4000 (1814) | 9.8(3.0) | 190amps | 2/7969(3615) |
| 6000 (2722) | 8.6(2.7) | 230amps | 3/6624(3005) |
| 8000 (3629) | 7.9(2.0) | 280amps | 4/5667(2571) |
| 10000 (4536) | 4.9(1.5) | 360amps |

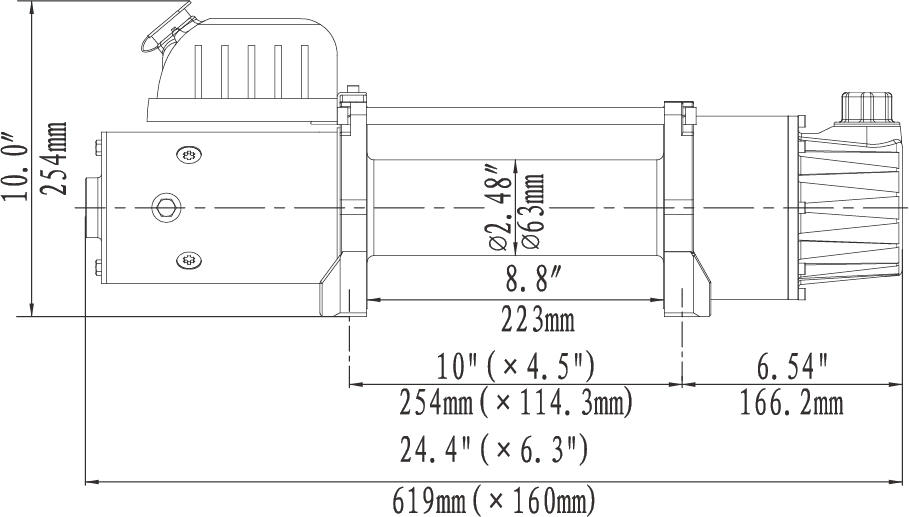

外形尺寸
