RUNVA
EWD 12000
电动绞盘 · EWD 12000
RUNVA EWD 12000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Free spooling clutch
- Runva patent three stage planetary gear reducer
- Two speed and clutch and speed shift structure
- Clutch and two speed gear actions auto engagement
- Automatic screw cone braking action
- Series wound motor
- Wireless remote control available
- Remote control through control box and switch
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 12000 lbs (5443 kgs) |
|---|---|
| Motor:series wound | 12V:Input:5.4kW/7.2hp;Output:2.4kW/3.2hp |
| 24V:Input:4.8kW/6.4hp;Output:3.1kW/4.2hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 223:1(Low speed);71.6:1(High speed) |
| Clutch | Two-speed shift |
| Cable(Dia×L) | Ø13/32″×83.7’(Ø10.2mm×25.5m) |
| Drum size(Dia×L) | Ø2.48″×8.8″(Ø63mm×223mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm)4-M10 |
| Net weight | 90.4lbs/41kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 29.5(9.0) | 70amps | 1/12000 (5443) |
| 3000 (1361) | 11.5(3.5) | 170amps | 2/9562(4337) |
| 6000 (2722) | 7.9(2.4) | 250amps | 3/7948(3605) |
| 9000 (4082) | 6.6(2.0) | 345amps | 4/6800(3084) |
| 12000 (5443) | 4.9(1.5) | 450amps |

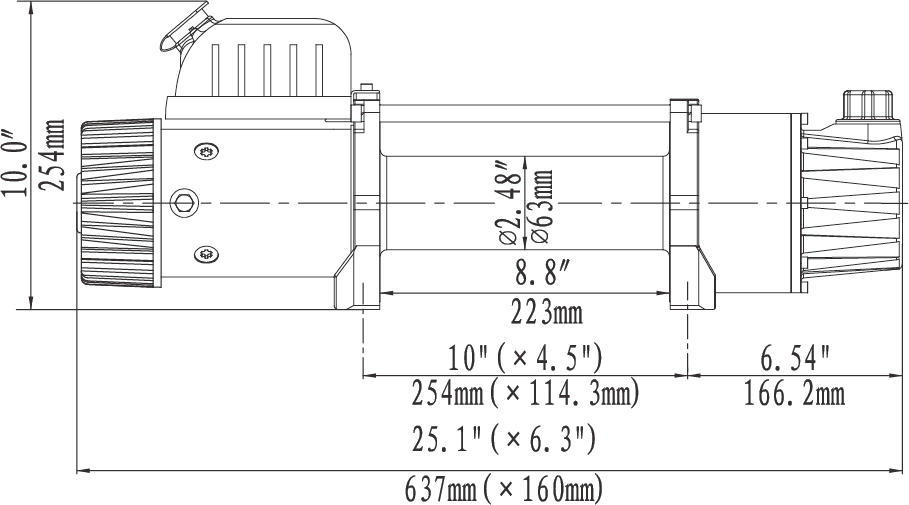

外形尺寸
