RUNVA
EWK 2000
电动绞盘 · EWK 2000
RUNVA EWK 2000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,000 lbs（907 kgf）
- Full spooling clutch
- Self-lock braking action
- Rated line pull by using snatch block
- High current switch control directly
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 2000 lbs (907 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:1.7kW/2.3hp;Output:0.6kW/0.8hp |
| 24V:Input:1.9kW/2.6hp;Output:0.7kW/0.9hp | |
| Brake | Self-lock |
| Geartrain | Full steel |
| Gear reduction ratio | 153:1 |
| Clutch | Full spooling |
| Cable(Dia×L) | Ø5/32″×49’(Ø4mm×15m) |
| Drum size(Dia×L) | Ø1.24″×2.87″(Ø31.5mm×73mm) |
| Mounting bolt pattern | 3.13″(79.5mm);2-M8 |
| Net weight | 15.0lbs/6.8kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 10.5(3.2) | 15amps | 2/1630(739) |
| 500 (227) | 9.2(2.8) | 25amps | 3/1380(626) |
| 1000 (454) | 7.5(2.3) | 40amps | 4/1190(540) |
| 1500 (680) | 5.9(1.8) | 70amps | 5/1050(476) |
| 2000 (907) | 3.3(1.0) | 90amps | 6/940(426) |

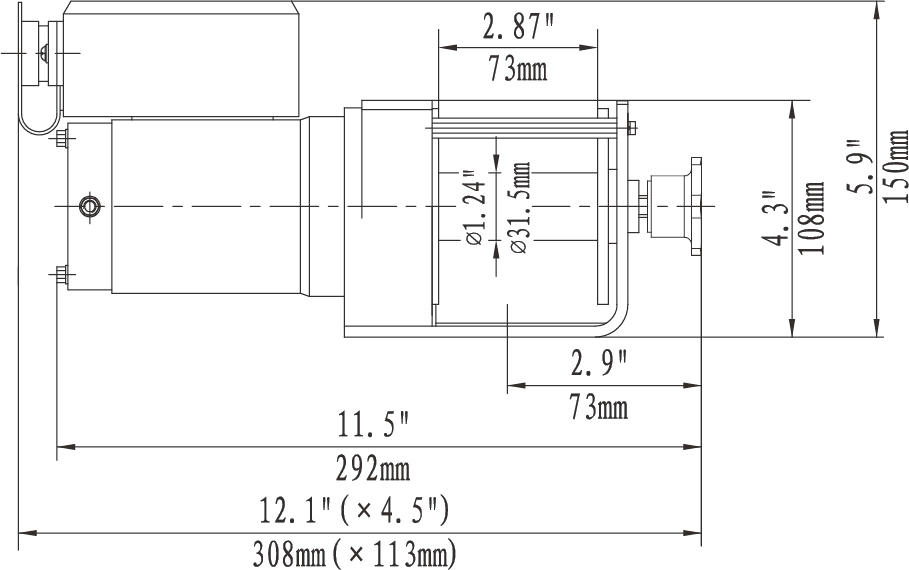

外形尺寸
