EWN 10000
电动绞盘 · EWN 10000
直流12/24V可选，拉力44 kN
适用场景与工作类型
越野脱困
消防救援
牵引绞盘
越野脱困
消防救援
牵引绞盘
- 电压类型
- DC
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Free spooling clutch
- Automatic screw cone braking action
- Series wound motor
- Runva patent three stage planetary gear reducer
- Sepcially designed shape for convenience of installation and good looking
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 10000 lbs (4536 kgs) |
|---|---|
| Motor:series wound | 12V:Input:4.6kW/6.1hp;Output:2.1kW/2.8hp |
| 24V:Input:6.5kW/8.7hp;Output:2.8kW/3.8hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 332:1 |
| Clutch | Full spooling |
| Cable(Dia×L) | Ø3/8″×85.3’(Ø9.2mm×26m) |
| Drum size(Dia×L) | Ø2.8″×8.6″(Ø72mm×219mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm)4-M12 |
| Net weight | 128.5lbs/58.3kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 13.8(4.2) | 65amps | 1/10000(4536) |
| 3000 (1361) | 9.2(2.8) | 123amps | 2/8000(3629) |
| 6000 (2722) | 6.6(2.0) | 220amps | 3/6700(3039) |
| 8000 (3629) | 5.6(1.7) | 255amps | 4/5747(2607) |
| 10000 (4536) | 5.2(1.6) | 300amps |

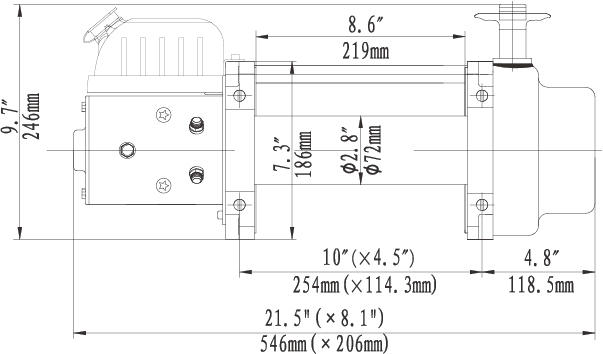

外形尺寸
