RUNVA
EWN 12000
电动绞盘 · EWN 12000
直流12/24V可选，拉力53 kN
适用场景与工作类型
越野脱困
消防救援
牵引绞盘
越野脱困
消防救援
牵引绞盘
- 电压类型
- DC
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Free spooling clutch
- Automatic screw cone braking action
- Series wound motor
- Runva patent three stage planetary gear reducer
- Sepcially designed shape for convenience of installation and good looking
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 12000 lbs (5443 kgs) |
|---|---|
| Motor:series wound | 12V:Input:5.4kW/7.2hp;Output:2.7kW/3.6hp |
| 24V:Input:5.3kW/7.1hp;Output:3.3kW/4.4hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 332:1 |
| Clutch | Full spooling |
| Cable(Dia×L) | Ø13/32″×83.7’(Ø10.2mm×25.5m) |
| Drum size(Dia×L) | Ø2.8″×8.6″(Ø72mm×219mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm)4-M12 |
| Net weight | 132.3lbs/61kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 15.7(4.8) | 50amps | 1/12000 (5443) |
| 6000 (2722) | 10.2(3.1) | 130amps | 2/9800(4445) |
| 8000 (3629) | 8.5(2.6) | 210amps | 3/8300(3765) |
| 10000 (4536) | 6.6(2.0) | 250amps | 4/7200(3266) |
| 12000 (5443) | 5.29(1.8) | 310amps |

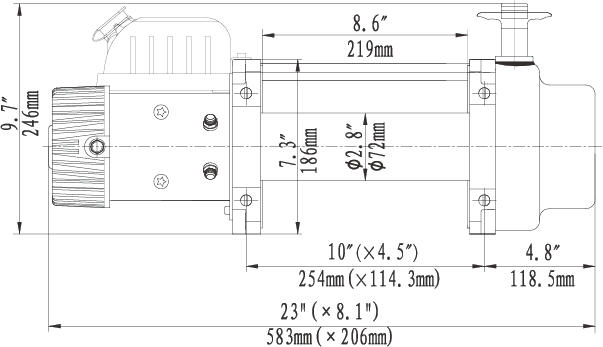

外形尺寸
