EWN 15000
电动绞盘 · EWN 15000
直流12/24V可选，拉力67 kN
适用场景与工作类型
消防救援
工业工程
牵引绞盘
消防救援
工业工程
牵引绞盘
- 电压类型
- DC
- 额定拉力
- 15,000 lbs（6,804 kgf）
- Free spooling clutch
- Automatic screw cone braking action
- Series wound motor
- Runva patent three stage planetary gear reducer
- Sepcially designed shape for convenience of installation and good looking
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 15000 lbs (6804 kgs) |
|---|---|
| Motor:series wound | 12V:Input:4.2kW/5.5hp;Output:2.5kW/3.4hp |
| 24V:Input:5.5kW/7.5hp;Output:3.2kW/4.4hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 446:1 |
| Clutch | Full spooling |
| Cable(Dia×L) | Ø7/16″×83.7’(Ø11mm×25.5m) |
| Drum size(Dia×L) | Ø3.5″×8.8″(Ø88mm×217mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm)4-M12 |
| Net weight | 162.9lbs/73.8kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 15.0(4.6) | 60amps | 1/15000 (6804) |
| 8000 (3629) | 8.2(2.5) | 220amps | 2/12000 (5443) |
| 10000 (4536) | 6.0(1.9) | 260amps | 3/10100(4581) |
| 12000 (5443) | 5.6(1.7) | 300amps | 4/8720(3955) |
| 15000 (6804) | 4.3(1.3) | 330amps |

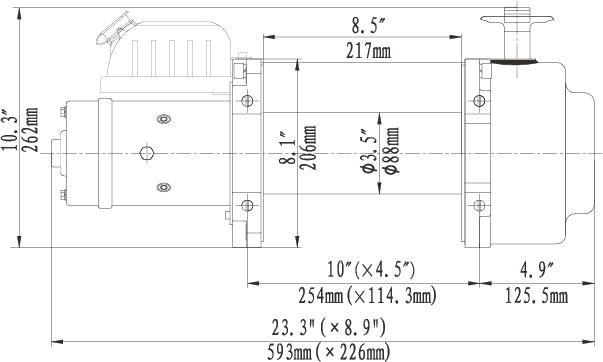

外形尺寸
