RUNVA
EWN 17500
电动绞盘 · EWN 17500
直流12/24V可选，拉力79 kN
适用场景与工作类型
消防救援
工业工程
牵引绞盘
消防救援
工业工程
牵引绞盘
- 电压类型
- DC
- 额定拉力
- 17,500 lbs（7,938 kgf）
- Free spooling clutch
- Automatic screw cone braking action
- Series wound motor
- Runva patent three stage planetary gear reducer
- Sepcially designed shape for convenience of installation and good looking
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 17500 lbs (7938 kgs) |
|---|---|
| Motor:series wound | 12V:Input:5.4kW/7.1hp;Output:2.9kW/3.9hp |
| 24V:Input:6.0kW/7.9hp;Output:3.1kW/4.1hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 430:1 |
| Clutch | Full spooling |
| Cable(Dia×L) | Ø15/32″×87’(Ø12mm×26.5m) |
| Drum size(Dia×L) | Ø3.5″×8.5″(Ø89mm×217mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm) 10″×6.5″(254mm×165.1mm) 8-M12 |
| Net weight | 147.7lbs/67.0kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 19.7(6.0) | 100amps | 1/17500 (7938) |
| 10000 (4536) | 5.6(1.7) | 320amps | 2/14140(6414) |
| 14000 (6350) | 4.6(1.4) | 380amps | 3/11862(5381) |
| 17500 (7938) | 3.0(0.9) | 450amps | 4/10217(4634) |

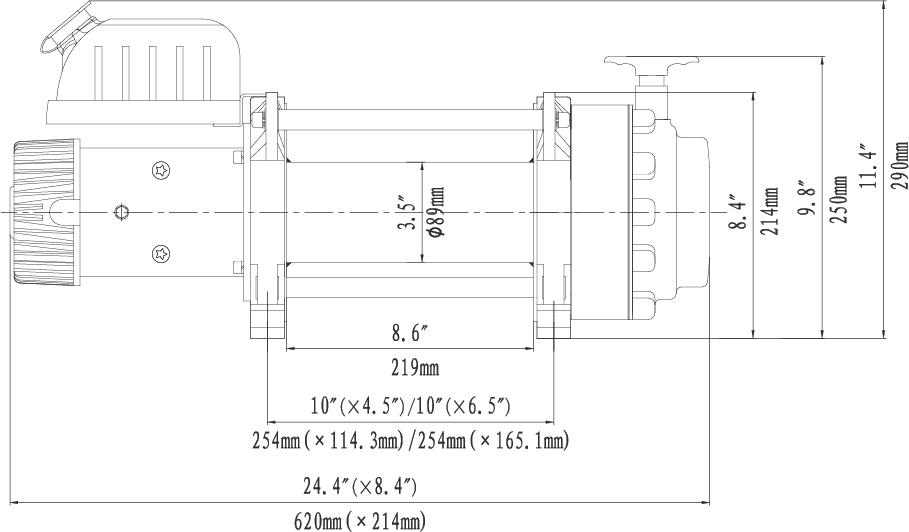

外形尺寸
