RUNVA
EWP 3500
电动绞盘 · EWP 3500
RUNVA EWP 3500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,500 lbs（1,588 kgf）
- Full steel gear reducer
- Runva patent cam cluth
- Self-lock braking action
- High current switch control directly
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 3500 lbs (1588 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.4kW/3.2hp;Output:1.0kW/1.3hp |
| 24V:Input:2.9kW/3.9hp;Output:1.2kW/1.6hp | |
| Brake | Self-lock |
| Geartrain | Full steel |
| Gear reduction ratio | 170:1 |
| Clutch | Cam |
| Cable(Dia×L) | Ø7/32″×42.0’(Ø5.4mm×12.8m) |
| Drum size(Dia×L) | Ø1.46″×3.15″(Ø37mm×80mm) |
| Mounting bolt pattern | 4.9″x3″(124mmx76mm);4-M8 |
| Net weight | 22.0lbs/10.0kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 10.2(3.1) | 20amps | 2/2789(1265) |
| 1000 (454) | 8.9(2.7) | 75amps | 3/2319(1052) |
| 2000 (907) | 7.5(2.3) | 130amps | 4/1984(900) |
| 3500 (1588) | 4.6(1.4) | 200amps | 5/1733(786) |

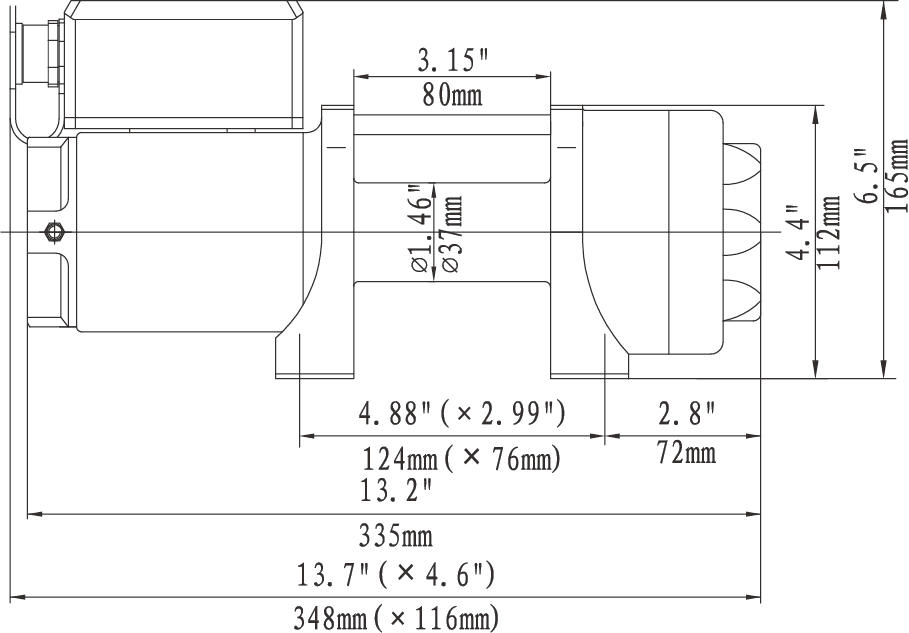

外形尺寸
