EWP 4500
电动绞盘 · EWP 4500
RUNVA EWP 4500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 4,500 lbs（2,041 kgf）
- Full steel gear reducer
- Runva patent cam cluth
- Self-lock braking action
- High current switch control directly
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 4500 lbs (2041 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.5kW/3.4hp;Output:1.1kW/1.4hp |
| 24V:Input:2.6kW/3.5hp;Output:1.2kW/1.5hp | |
| Brake | Mechanical spring |
| Geartrain | Full steel |
| Gear reduction ratio | 166:1 |
| Clutch | Cam |
| Cable(Dia×L) | Ø15/64″×47.6’(Ø6mm×14.5m) |
| Drum size(Dia×L) | Ø2.0″×4.9″(Ø50.4mm×125mm) |
| Mounting bolt pattern | 6.6″×3″(168mm×76.2mm);4-M8 |
| Net weight | 34.2lbs/15.5kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 12.8(3.9) | 28amps | 1/4500 (2041) |
| 1000 (454) | 9.8(3.0) | 80amps | 2/3841(1742) |
| 2000 (907) | 8.5(2.6) | 120amps | 3/3310(1501) |
| 3000 (1361) | 6.9(2.1) | 160amps | 4/2907(1319) |
| 4500 (2041) | 4.6(1.4) | 220amps |

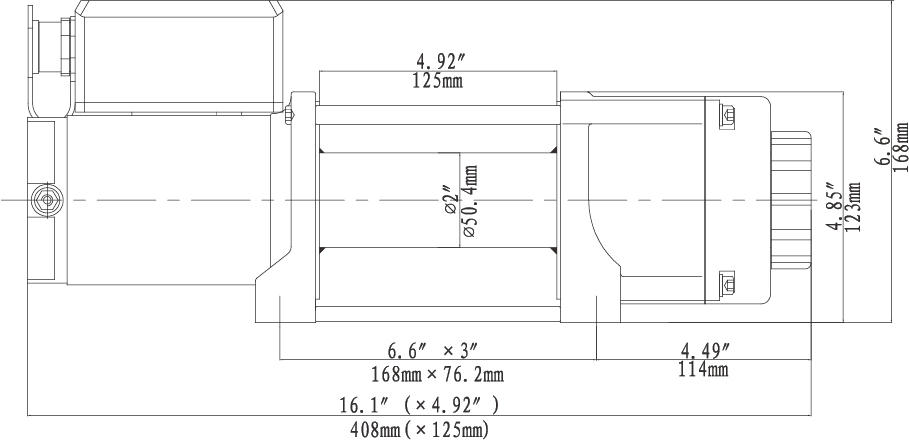

外形尺寸
