RUNVA
EWS 10000
电动绞盘 · EWS 10000
RUNVA EWS 10000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Runva 10DB winch with 7.2HP(5.4KW) sealed motor
- Waterproof grade IP67
- “Multi Stop” 10% ratchet brake inside the gearbox
- Gear ratio 108:1 ,3 stage planetary full steel gear
- Designed for the hard-core competition vehicle
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 10000 lbs (4536 kgs) |
|---|---|
| Motor:series wound | 12V:Input:5.4kW/7.2hp;Output:2.7kW/3.6hp |
| 24V:Input:5.3kW/7.1hp;Output:3.3kW/4.4hp | |
| Brake | Patented ractehet-paw |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 80:1 |
| Waterproof | IP67 |
| Cable(Dia×L) | Ø3/8″×85’(Ø9.2mm×26m) |
| Drum size(Dia×L) | Ø2.8″×8.4″(Ø72mm×214mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm)4-M10 |
| Net weight | 136.5lbs/61.9kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 29.5(9.0) | 150amps | 1/10000(4536) |
| 4000(1816) | 22.6(6.8) | 420amps | 2/8153(3698) |
| 6000(2722) | 18.7(5.7) | 580amps | 3/6881(3121) |
| 8000(3629) | 15.7(4.8) | 700amps | 4/2974(1349) |
| 10000(4536) | 12.8(3.9) | 860amps | 4/5953(2700) |

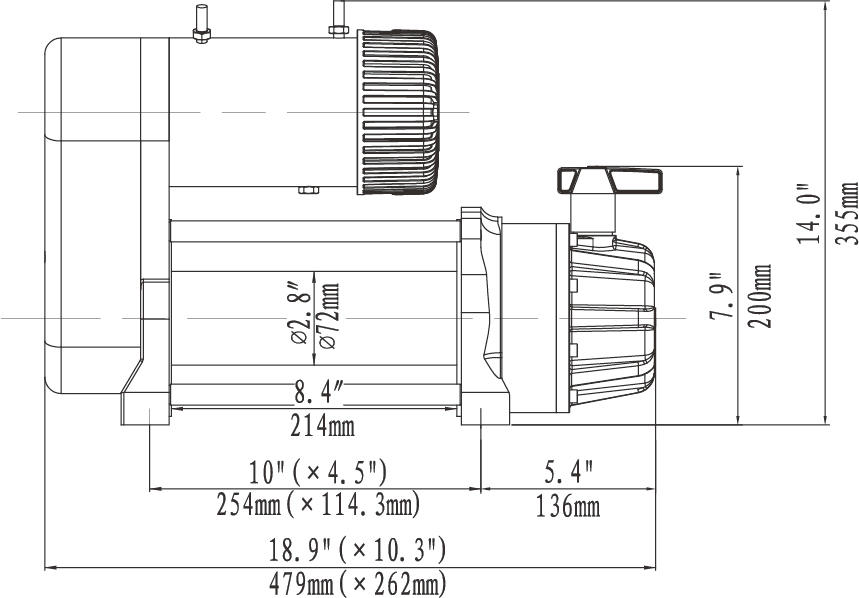

外形尺寸
