RUNVA
EWX 10000
电动绞盘 · EWX 10000
RUNVA EWX 10000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Full steel gear
- Runva patent three stage planetary gear reducer
- Sliding geared ring cluth
- Automatic screw cone braking action
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 10000 lbs (4536 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:4.3kW/5.8hp;Output:2.3kW/3.1hp |
| 24V:Input:5.9kW/7.9hp;Output:3.0kW/4.0hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 230:1 |
| Clutch | Sliding geared ring clutch |
| Cable(Dia×L) | Ø3/8″×85’(Ø9.2mm×26m) |
| Drum size(Dia×L) | Ø2.48″×8.8″(Ø63mm×223mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm)4-M10 |
| Net weight | 88.2lbs/40.0kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 20.7(6.3) | 80amps | 1/10000(4536) |
| 4000 (1814) | 12.5(3.8) | 230amps | 2/7969(3615) |
| 7000 (3175) | 9.5(2.9) | 290amps | 3/6624(3005) |
| 10000 (4536) | 6.2(1.9) | 360amps | 4/5667(2571) |

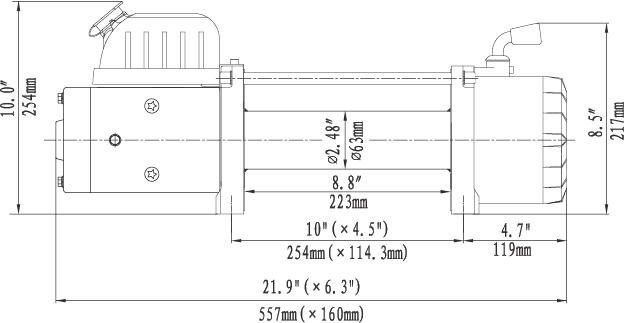

外形尺寸
