RUNVA
EWX 12000
电动绞盘 · EWX 12000
RUNVA EWX 12000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Full steel gear
- Runva patent three stage planetary gear reducer
- Sliding geared ring cluth
- Automatic screw cone braking action
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 12000 lbs (5443 kgs) |
|---|---|
| Motor:series wound | 12V:Input:5.4kW/7.2hp;Output:2.7kW/3.6hp |
| 24V:Input:5.3kW/7.1hp;Output:3.3kW/4.4hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 230:1 |
| Clutch | Sliding geared ring clutch |
| Cable(Dia×L) | Ø13/32″×83.7’(Ø10.2mm×25.5m) |
| Drum size(Dia×L) | Ø2.48″×8.8″(Ø63mm×223mm) |
| Mounting bolt pattern | 10″×4.5″(254×114.3mm)4-M10 |
| Net weight | 92.6lbs/42.0kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 22.3(6.8) | 100amps | 1/12000(5443) |
| 4000 (1814) | 13.1(4.0) | 220amps | 2/9563(4338) |
| 8000 (3629) | 9.8(3.0) | 330amps | 3/7948(3605) |
| 12000 (5443) | 5.9(1.8) | 450amps | 4/6800(3084) |

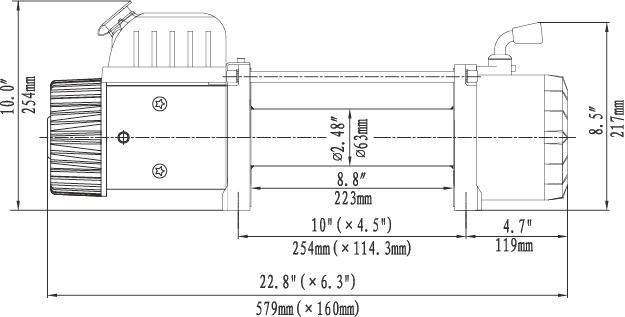

外形尺寸
