RUNVA
EWX 3000
电动绞盘 · EWX 3000
RUNVA EWX 3000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,000 lbs（1,361 kgf）
- Full spooling clutch
- Self-lock braking action
- Rated line pull by using snatch block
- High current switch control directly
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 3000 lbs (1361 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.2kW/2.9hp;Output:0.8kW/1.1hp |
| 24V:Input:2.4kW/3.2hp;Output:0.9kW/1.2hp | |
| Brake | Self-lock |
| Geartrain | Full steel |
| Gear reduction ratio | 153:1 |
| Clutch | Full spooling |
| Cable(Dia×L) | Ø3/16″×46’(Ø4.8mm×14m) |
| Drum size(Dia×L) | Ø1.24″×2.87″(Ø31.5mm×73mm) |
| Mounting bolt pattern | 3.13″(79.5mm);2-M8 |
| Net weight | 21.6lbs/9.8kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 10.2(3.1) | 18amps | 2/2370(1075) |
| 500 (227) | 8.2(2.5) | 60amps | 3/1960(889) |
| 1000 (454) | 7.5(2.3) | 90amps | 4/1670(756) |
| 2000 (907) | 5.9(1.8) | 130amps | 5/1460(662) |
| 3000 (1361) | 4.3(1.3) | 180amps | 6/1290(585) |

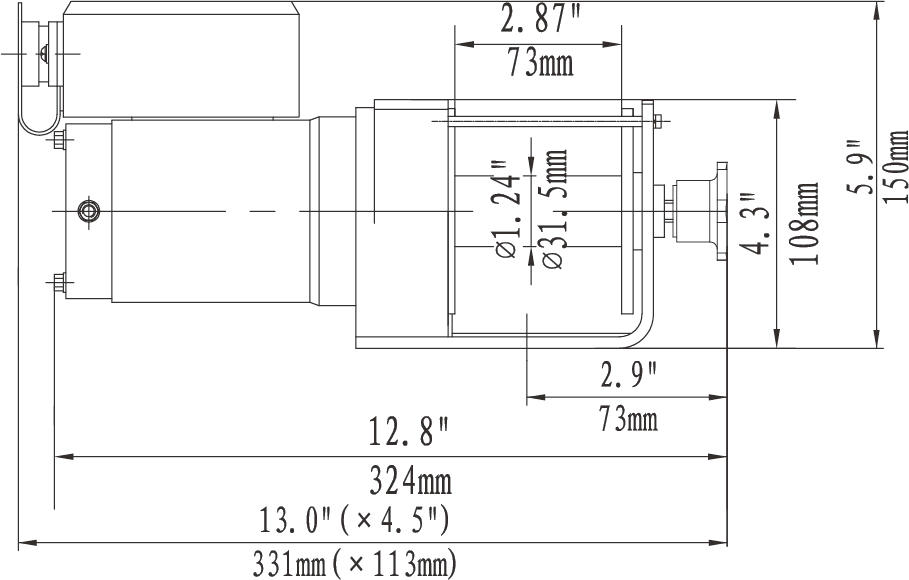

外形尺寸
