RUNVA
EWX 5500
电动绞盘 · EWX 5500
RUNVA EWX 5500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 5,500 lbs（2,495 kgf）
- Full steel gear
- Runva patent three stage planetary gear reducer
- Sliding geared ring cluth
- Automatic screw cone braking action
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 5500 lbs (2495 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.4kW/3.2hp;Output:1.0kW/1.3hp |
| 24V:Input:2.9kW/3.9hp;Output:1.3kW/1.7hp | |
| Brake | Automatic screw cone |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 172:1 |
| Clutch | Sliding geared ring clutch |
| Cable(Dia×L) | Ø9/32″×45.9’(Ø7.2mm×14.0m) |
| Drum size(Dia×L) | Ø1.77″×3.7″(Ø45mm×93mm) |
| Mounting bolt pattern | 6.3″×3.78″(159mm×96mm)4-M8 |
| Net weight | 30.6lbs/13.9kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 11.2(3.4) | 25amps | 1/5500 (2495) |
| 1500 (680) | 8.9(2.7) | 50amps | 2/4311(1955) |
| 2500 (1134) | 7.5(2.3) | 80amps | 3/3544(1608) |
| 4500 (2041) | 5.2(1.6) | 120amps | 4/3009(1365) |
| 5500 (2495) | 4.6(1.4) | 190amps |

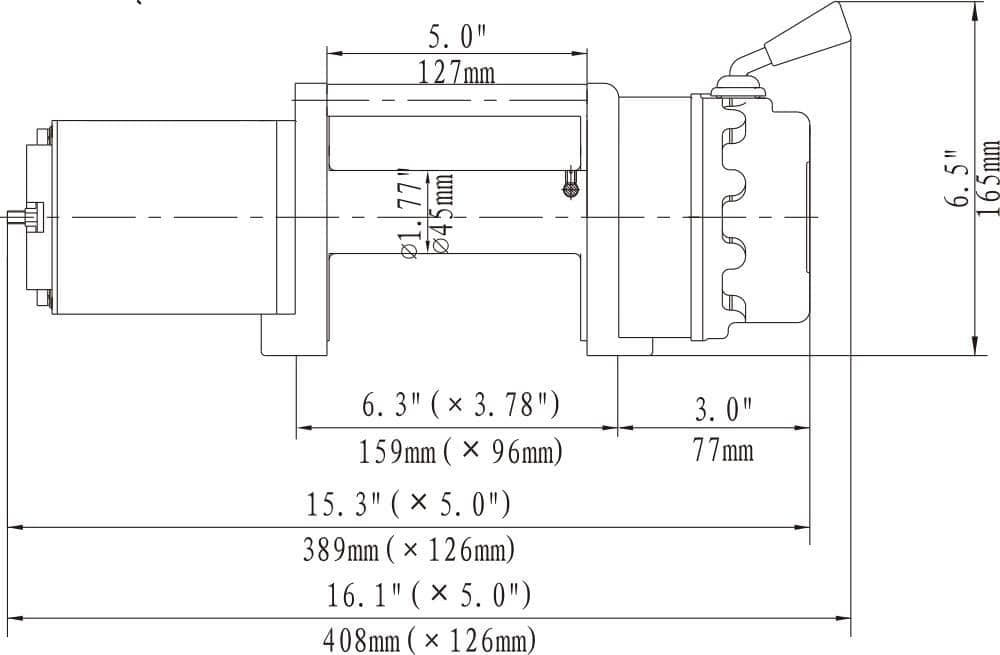

外形尺寸
