RISE 2500
电动绞盘 · RISE 2500
RUNVA RISE 2500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,500 lbs（1,134 kgf）
- Smooth & reliable 3-stage planetary gear train
- Robust performance with powerful motor
- All-new easy-to-operate clutch design
- Full IP67 waterproof design
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 2500 lbs (1135 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.4kW/3.2hp;Output:1.0kW/1.3hp |
| 24V:Input:2.4kW/3.2hp;Output:1.05kW/1.37hp | |
| Brake | Mechanical spring |
| Geartrain | Full steel |
| Gear reduction ratio | 166:1 |
| Clutch | Cam |
| Cable(Dia×L) | Ø3/16″×45.9’(Ø4.8mm×14.0m) |
| Drum size(Dia×L) | Ø2.0″×3.2″(Ø50.4mm×82mm) |
| Mounting bolt pattern | 4.9″x3″(124mmx76.2mm);4-M8 |
| Net weight | 26.9lbs/12.2kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 17.0(5.2) | 28amps | 1/2500 (1135) |
| 1000 (454) | 9.8(3.0) | 80amps | 2/2129(966) |
| 2000 (907) | 8.2(2.5) | 140amps | 3/1854(842) |
| 2500 (1135) | 7.2(2.2) | 150amps | 4/1642(745) |

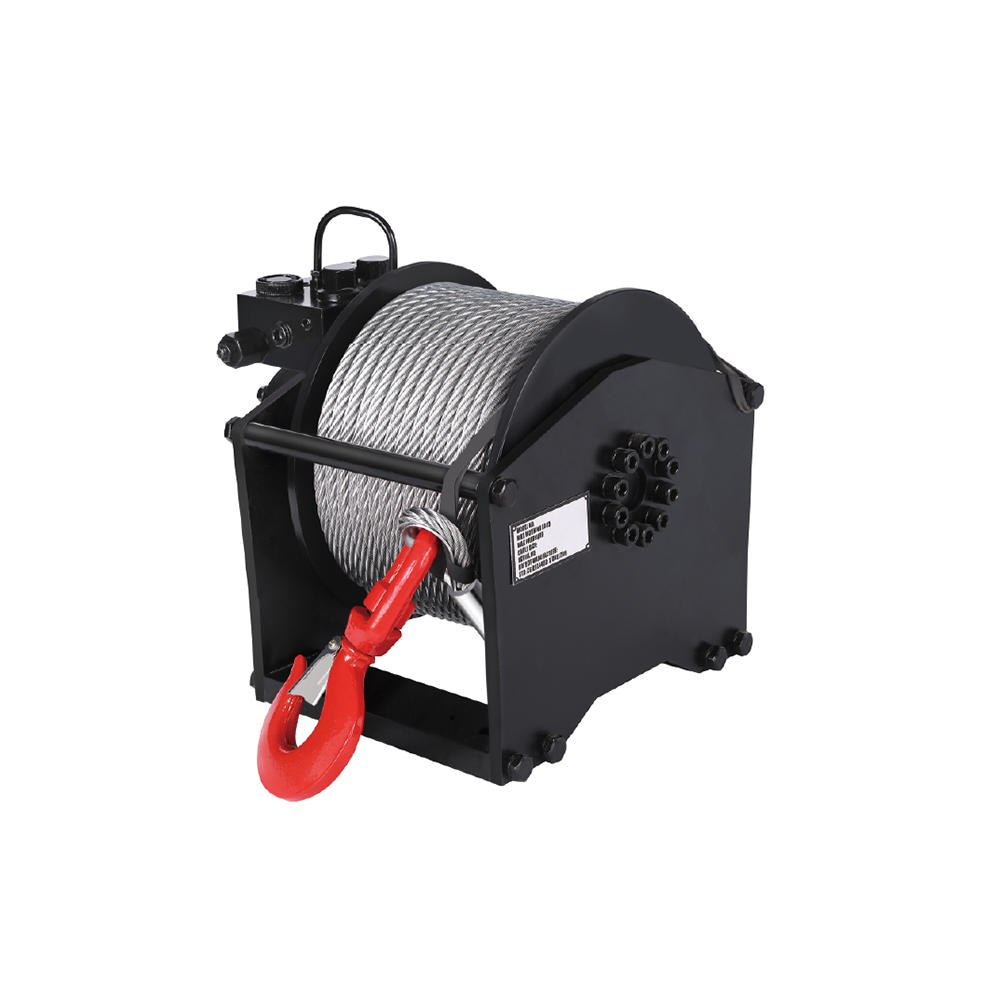

外形尺寸
