电动绞盘 · RISE 4500
RUNVA RISE 4500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 4,500 lbs（2,041 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 4500 lbs (2041 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.5kW/3.4hp;Output:1.1kW/1.4hp |
| 24V:Input:2.6kW/3.5hp;Output:1.2kW/1.5hp | |
| Brake | Mechanical spring |
| Geartrain | Full steel |
| Gear reduction ratio | 166:1 |
| Clutch | Cam |
| Cable(Dia×L) | Ø1/4″×47.6’(Ø6.0mm×14.5m) |
| Drum size(Dia×L) | Ø2.0″×5.0″(Ø50.4mm×126mm) |
| Mounting bolt pattern | 6.6″x3″(168mmx76.2mm);4-M8 |
| Net weight | 32.4lbs/14.7kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 12.5(3.8) | 28amps | 1/4500 (2041) |
| 1000 (454) | 8.5(2.6) | 140amps | 2/3833(1740) |
| 2500 (1135) | 6.2(1.9) | 170amps | 3/3338(1515) |
| 4500 (2041) | 5.2(1.6) | 220amps | 4/2957(1342) |

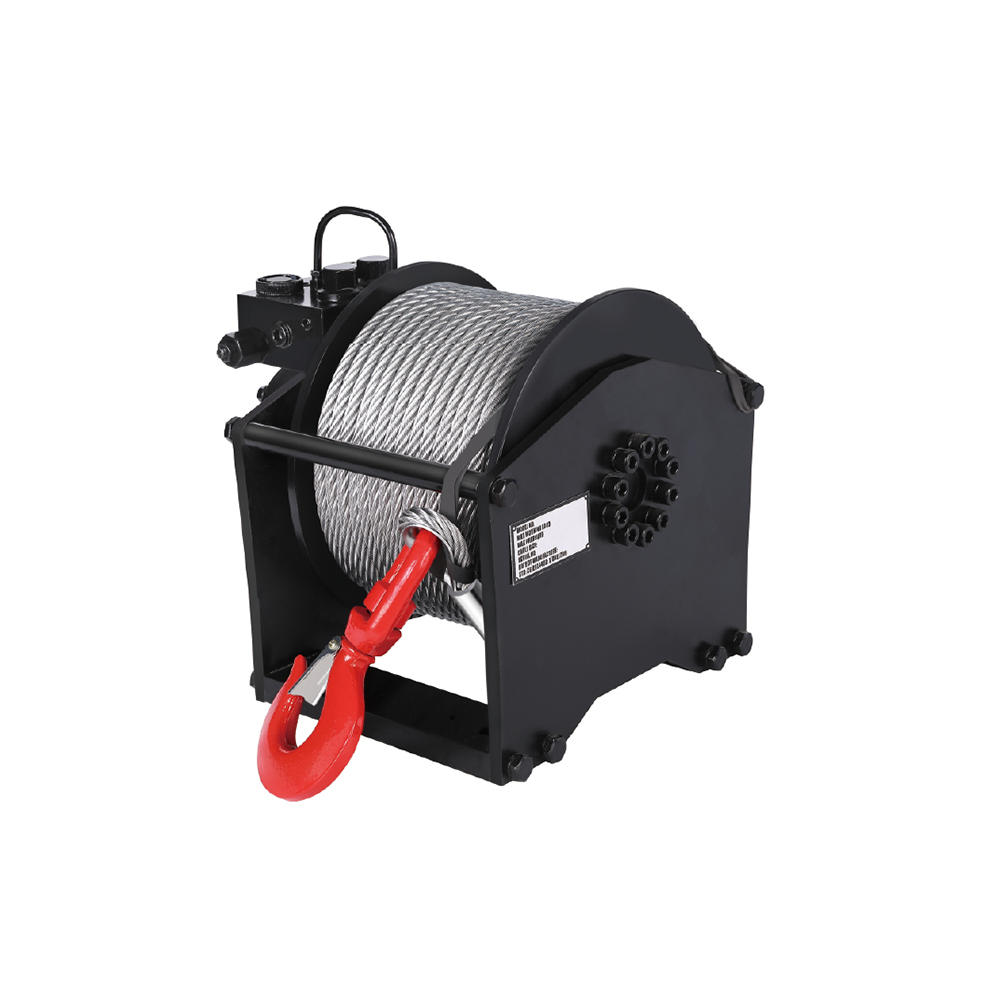

外形尺寸
