RUNVA
ROMA 5000
电动绞盘 · ROMA 5000
RUNVA ROMA 5000 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 5,000 lbs（2,268 kgf）
- Innovative,smart,and compact
- Advanced visual impact
- All-steel 3-stage planetary gear train
- Performance,reliable and durable braking
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 5000 lbs (2268 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:2.4kW/3.2hp;Output:1.0kW/1.3hp |
| 24V:Input:2.9kW/3.9hp;Output:1.3kW/1.7hp | |
| Brake | Mechanical spring |
| Geartrain | Full steel |
| Gear reduction ratio | 206:1 |
| Clutch | Cam |
| Cable(Dia×L) | Ø1/4″×47.6’(Ø6.0mm×14.5m) |
| Rope(Dia×L): | Ø9/32″×45.9’(Ø7.0mm×14m) |
| Drum size(Dia×L): | Ø1.97″×5.4″(Ø50mm×138mm) |
| Mounting bolt pattern | 6.6″x3″(168mmx76.2mm);4-M8 |
| Net weight | 32.4lbs/14.7kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 13.5(4.1) | 24amps | 1/5000(2268) |
| 1500(680) | 11.2(3.4) | 50amps | 2/4075(1848) |
| 3500(1588) | 9.5(2.9) | 130amps | 3/3439(1559) |
| 5000(2268) | 2(0.6) | 300amps | 4/2974(1349) |

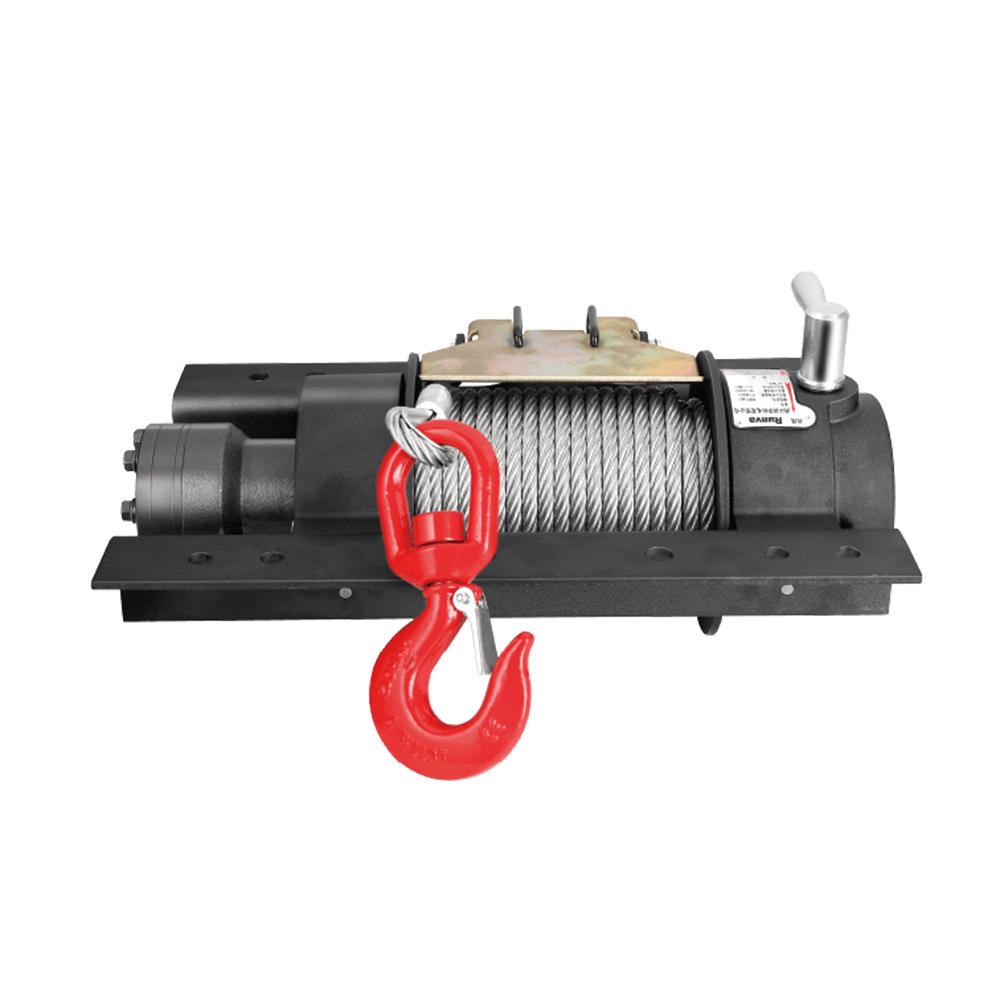

外形尺寸
