RUNVA
SUP 2500
电动绞盘 · SUP 2500
RUNVA SUP 2500 电动绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,500 lbs（1,134 kgf）
- Professional design with high performance/price ratio
- High efficiency 3-stage planetary gear train
- Ultra-strength gear ring and stand
- Full IP67 waterproof design
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 2500 lbs (1135 kgs) |
|---|---|
| Motor:permanent magnet | 12V:Input:1.9kW/2.6hp; |
| Output:0.85kW/1.1hp | |
| Brake | Mechanical spring |
| Geartrain | Full steel |
| Gear reduction ratio | 136:1 |
| Clutch | Cam |
| Cable(Dia×L) | Ø3/16″×45.9’(Ø4.8mm×14m) |
| Drum size(Dia×L) | Ø2.0″×3.2″(Ø50mm×80mm) |
| Mounting bolt pattern | 4.9″×3″(124mm×76.2mm)4-M8 |
| Net weight | 22lbs/ 10kgs |
性能数据
| 12V DC PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) | Current | layer/Lbs.(kgs) |
| 0 | 17.7(5.4) | 22amps | 1/2500(1135) |
| 1000 (454) | 12.1(3.7) | 80amps | 2/2127(965) |
| 2000 (907) | 9.0(2.7) | 110amps | 3/1851(840) |
| 2500 (1135) | 6.9(2.1) | 130amps | 4/1638(743) |
| 5/1469(666) |

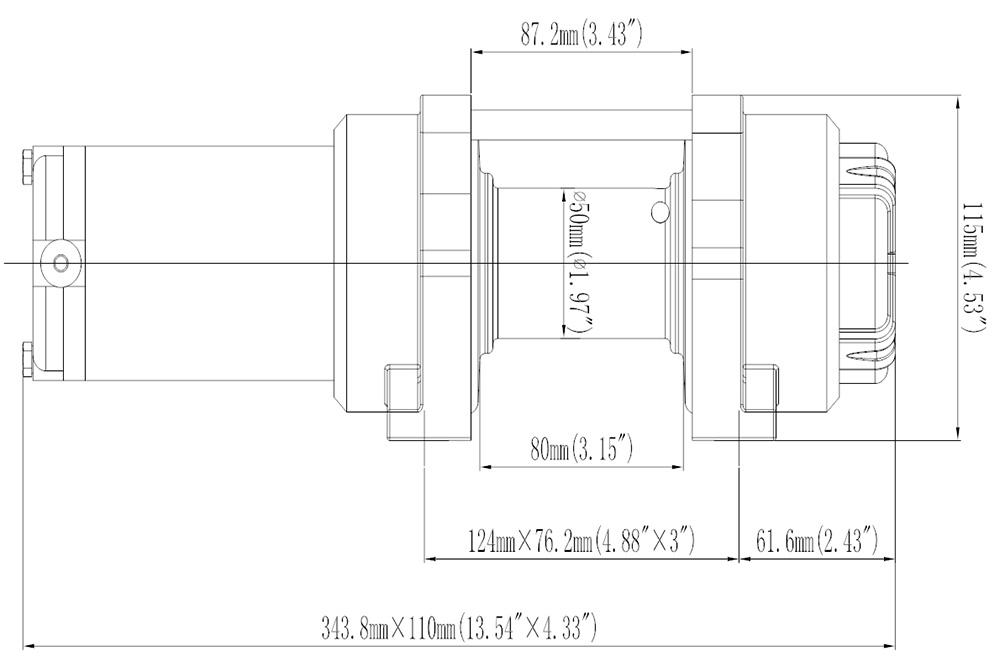

外形尺寸
