RUNVA
HWD 10000
液压绞盘 · HWD 10000
RUNVA HWD 10000 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 10000 lbs (4536 kgs) |
|---|---|
| Motor:permanent magnet | 50ml/r |
| Oil flow | 5~50L/min |
| Pressure | 9.5Mpa |
| Geartrain | 2-stage planetary alloy gear |
| Gear reduction ratio | High speed:13.6:1;Low speed:42.2:1 |
| Cable(Dia×L) | Ø3/8″×85’(Ø9.2mm×26m) |
| Drum size(Dia×L) | Ø2.6″×8.54″(Ø66mm×217mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm)4-M12 |
| Net weight | 99lbs/44.9kgs |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) | layer/Lbs.(kgs) |
| 0 | 2.0(290.1) | 1.3(5) | 1.6(0.5) | 1/10000(4536) |
| 4000 (1814) | 4.5(652.6) | 2.6(10) | 3.3(1.0) | 2/7969(3615) |
| 6000 (2722) | 6.3(916.7) | 5.2(20) | 6.9(2.1) | 3/6624(3005) |
| 8000 (3629) | 7.7(1120.4) | 9.2(35) | 12.1(3.7) | 4/5667(2571) |
| 10000 (4536) | 9.5(1382.2) | 13.2(50) | 17.4(5.3) |

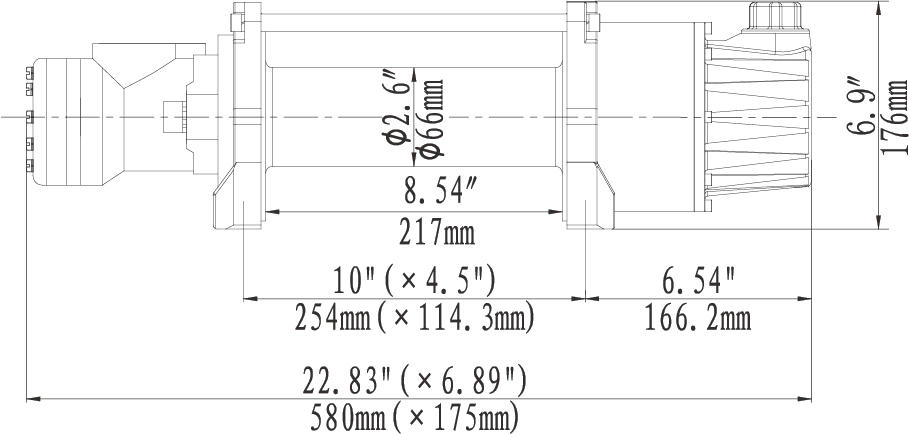

外形尺寸
