RUNVA
HWE 100
液压绞盘 · HWE 100
Designed with EN standard, the HWE Series provide reliable,powerful performance.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 22,000 lbs（9,979 kgf）
- Designed with EN standard, the HWE Series provide reliable,powerful performance. Wet-type hydraulic brake delivers heavy braking torque, long life and stable transmission. Capacities up to 30 tons make this line for wide application in engineering vehicle ,wrecker and recovery
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
- Designed with EN standard, the HWE Series provide reliable,powerful performance.
- Wet-type hydraulic brake delivers heavy braking torque, long life and stable transmission.
- Capacities up to 30 tons make this line for wide application in engineering vehicle ,wrecker and recovery
规格表
| Rated line pull | 22000 lbs (10000 kgs) |
|---|---|
| Motor displacement: | 200ml/r |
| Oil flow: | 15~75L/min |
| Pressure | 16Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain: | 2-stage planetary alloy gear |
| Gear reducation ratio: | 37.8:1 |
| Waterproof: | IP67 |
| Cable(Dia×L): | Ø5/7″×131’(Ø18mm×40m) |
| Drum size(Dia×L): | Ø7.46″×13.39″(Ø189.5mm×340mm) |
| Mounting bolt pattern: | 20.55″×7.09″×11.02″(522mm×180mm×280mm)8-M20 |
| Net weight: | 260kg |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) | layer/Lbs.(kgs) |
| 0 | 3.5(507.5) | 4.0(15) | 4.3(1.3) | 1/22000 (10000) |
| 14500 (6577) | 7(1015) | 10.6(40) | 10.8(3.3) | 2/18700 (8482) |
| 16300 (7394) | 10.5(1522.5) | 13.2(50) | 13.5(4.1) | 3/16300 (7394) |
| 18700 (8482) | 14(2030) | 15.9(60) | 15.8(4.8) | 4/14500 (6577) |
| 22000 (10000) | 16(2320) | 19.9(75) | 20.0(6.1) |

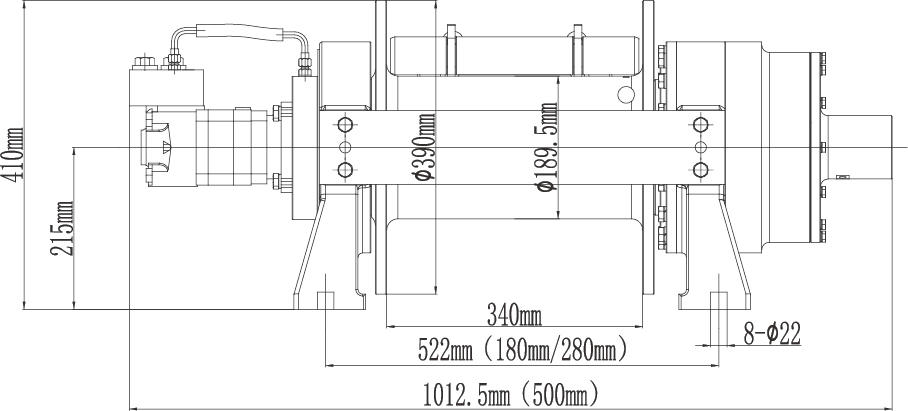

外形尺寸
