RUNVA
HWE 300
液压绞盘 · HWE 300
RUNVA HWE 300 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 66,000 lbs（29,938 kgf）
- Designed with EN standard, the HWE Series provide reliable,powerful performance. Wet-type hydraulic brake delivers heavy braking torque, long life and stable transmission. Capacities up to 30 tons make this line for wide application in engineering vehicle ,wrecker and recovery
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 66000 lbs (30000 kgs) |
|---|---|
| Motor displacement: | 500ml/r |
| Oil flow: | 500ml/r |
| Pressure | 16Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain: | 2-stage planetary alloy gear |
| Gear reducation ratio: | 53:1 |
| Waterproof: | IP67 |
| Cable(Dia×L): | Ø1.26″×131’(Ø32mm×40m) |
| Drum size(Dia×L): | Ø10.63″×14.2″(Ø270mm×360mm) |
| Mounting bolt pattern: | 24″×6.7″×11.2″(610mm×170mm×310mm)8-M27 |
| Net weight: | 700kg |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) | layer/Lbs.(kgs) |
| 0 | 7(1015.3) | 5.3(20) | 2.0(0.6) | 1/66000(30000) |
| 44000(20000) | 11(1595.4) | 13.2(50) | 5.2(1.6) | 2/54572(24754) |
| 55000(25000) | 14(2030.5) | 22.5(85) | 9.8(3.0) | 3/46450(21070) |
| 66000(30000) | 16(2320.6) | 31.7(120) | 13.5(4.1) | 4/40432(18340) |

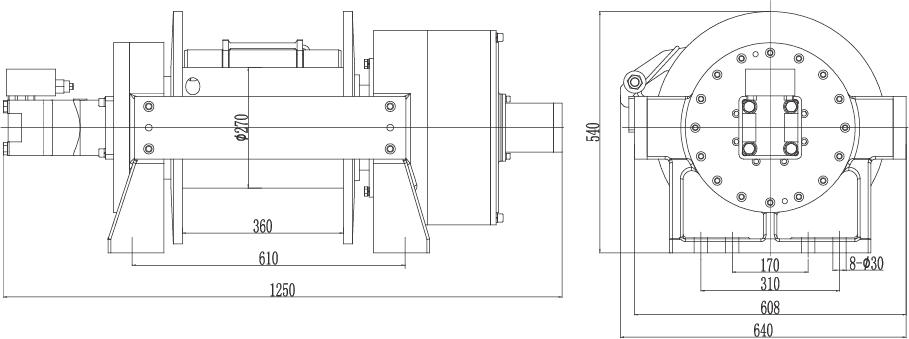

外形尺寸
