RUNVA
HWN 12000I
液压绞盘 · HWN 12000I
RUNVA HWN 12000I 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- HWN10000I-15000I is fitted with hydraulic brake and balance valve as standard.
- Full spooling clutch: Manual/Air clutch/manual&air mixed clutch as optional.
- Automatic braking action
- Runva patent two stage planetary gear reducer
- Specially designed shape for convenience of installation and good looking
- For engineering use available
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 12000 lbs (5443 kgs) |
|---|---|
| Motor:permanent magnet | 65ml/r |
| Oil flow | 5~45L/min |
| Pressure | 13.5Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain | 2-stage planetary steel gear |
| Gear reduction ratio | 25.5:1 |
| Clutch | Air,manual,air&manual optional |
| Waterproof | IP54 |
| Cable(Dia×L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size(Dia×L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Net weight | 117lbs/ 53 kgs |
性能数据
| PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) |
| 0 | 2.0(290.1) | 1.3(5.0) | 2.3(0.7) |
| 3000 (1361) | 4.5(652.7) | 2.6(10) | 4.6(1.4) |
| 6000 (2722) | 6.8(986.2) | 5.3(20.0) | 4.6(1.4) |
| 9000 (4082) | 9.0(1305.3) | 9.2(35.0) | 15.1(4.6) |
| 12000(5443) | 13.5(1958) | 10.6(40.0) | 17.4(5.3) |

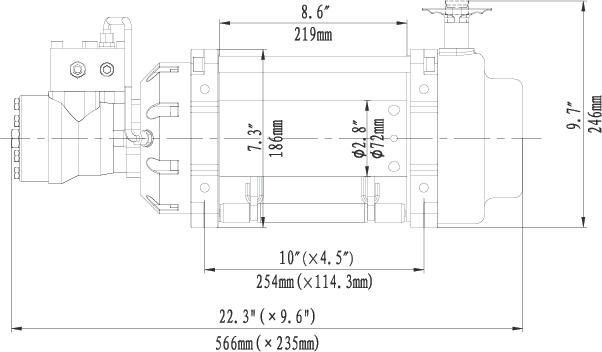

外形尺寸
