RUNVA
HWN 15000
液压绞盘 · HWN 15000
RUNVA HWN 15000 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 15,000 lbs（6,804 kgf）
- Full spooling clutch: Manual/Air clutch/manual&air mixed clutch as optional.
- Automatic braking action
- Runva patent two stage planetary gear reducer
- Specially designed shape for convenience of installation and good looking
- For engineering use available
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 15000 lbs (6804 kgs) |
|---|---|
| Motor:permanent magnet | 80ml/r |
| Oil flow | 5~60L/min |
| Pressure | 13Mpa |
| Brake | Automatic braking |
| Geartrain | 2-stage planetary gear |
| Gear reduction ratio | 33.4:1 |
| Clutch | Air,manual,air&manual optional |
| Cable(Dia×L) | Ø15/32″×87’(Ø12mm×26.5m) |
| Drum size(Dia×L) | Ø3.5″×8.4″(Ø89mm×214mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm)4-M12 |
| Net weight | 151.5lbs/68.5kgs |
性能数据
| PERFORMANCE SPECS (first layer) | |||
|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6(0.5) |
| 5000 (2268) | 4.3(623.7) | 2.6(10) | 3.3(1.0) |
| 10000 (4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) |
| 12000 (5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) |
| 15000 (6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) |

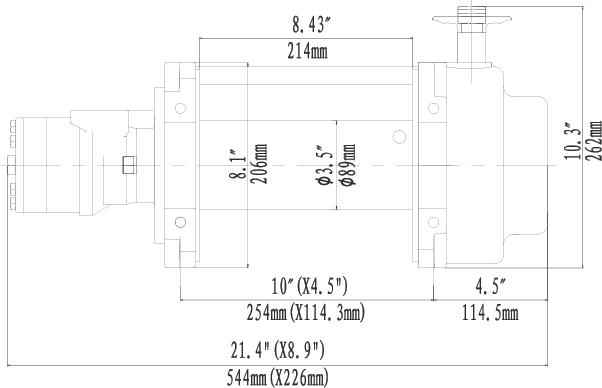

外形尺寸
