RUNVA
HWP 20000YP
液压绞盘 · HWP 20000YP
RUNVA HWP 20000YP 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 20,000 lbs（9,072 kgf）
- Full steel gear
- Runva patent two stage planetary gear reducer
- Two speed and clutch integrate with one handgrip
- Hydraulic multi-disc brake
- Counter banlance valve suppiled
- Air clutch or air and manual mixed clutch
- Special design for industry use
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 20000 lbs (9072 kgs) |
|---|---|
| Motor displacement: | 100ml/r |
| Oil flow: | 15~75L/min |
| Pressure | 17.5Mpa |
| Brake | Hydraulic multi-disc |
| Geartrain | 2-stage planetary steel gear |
| Gear reducation ratio: | High speed:6:1;Low speed:39:1 |
| Clutch | Air,manual,air&manual optional |
| Cable(Dia×L): | Ø9/16″×157’(Ø14mm×48m) |
| Drum size(Dia×L): | Ø5.4″×12.4″(Ø138mm×316mm) |
| Mounting bolt pattern: | 17.0″×2.5″×7.6″(431mm×64mm×192mm)8-M14 |
| Net weight: | 360lbs/163kgs |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) | layer/Lbs.(kgs) |
| 0 | 2.5(362.6) | 4.0(15) | 5.9(1.8) | 1/20000 (9072) |
| 4000 (1814) | 4.2(609.2) | 7.9(30) | 11.8(3.6) | 2/16889(7661) |
| 8000 (3629) | 8.5(1232.8) | 13.2(50) | 19.7(6.0) | 3/14615(6630) |
| 15000 (6804) | 14.0(2030.5) | 15.9(60) | 23.6(7.2) | 4/12881(5843) |
| 20000 (9072) | 17.5(2538.1) | 19.9(75) | 29.5(9.0) |

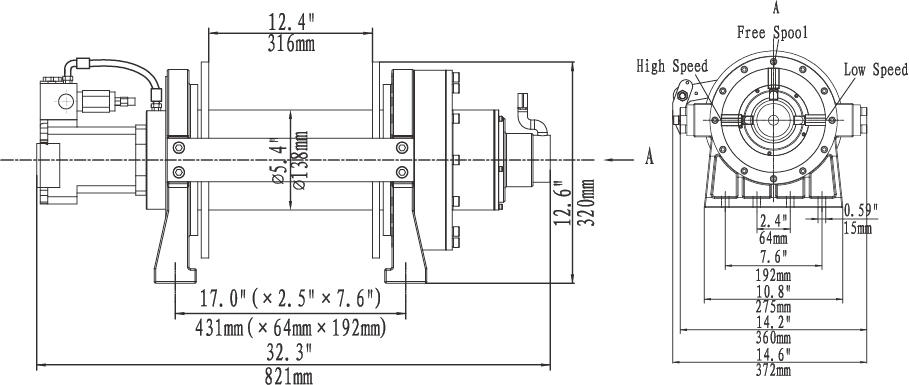

外形尺寸
