RUNVA
HWT015
液压绞盘 · HWT015
RUNVA HWT015 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,300 lbs（1,497 kgf）
- Designed with EN standard, the HWT Series provide reliable,powerful performance. 2-Stage planetary gear reducer delivers stable transmission under heavy duty. Long-time work makes wide application in engineering vehicle ,wrecker and recovery.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 3300 lbs(1500Kg) |
|---|---|
| Motor displacement: | 250ml/r |
| Oil flow: | 5-60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio: | 5.7 : 1 |
| Cable(Dia×L): | Ø13/32″×121.4′ (Ø10.2mmx37m) |
| Drum size(Dia×L): | Ø7 “×6.5″(Ø178mmx165mm) |
| Mounting bolt pattern: | 6.1″×8.94″(155mmx227mm) 4-M16 |
| Overall dimensions(L×W×H) | 13.7″×12.3″×11.7″ 347mmx312mmx298mm |
| Net weight: | 155.6lbs/70.6kg |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Pressure | 13Mpa | |||
| Oil flow | 50L/min | |||
| Layer of wire rope | 1 | 2 | 3 | 4 |
| Rated line pull lbs(kg) | 4372(1983) | 3945(1789) | 3594(1630) | 3300(1500) |
| Line speed ft/min(m/min) | 66.3(20.2) | 73.5(22.4) | 80.7(24.6) | 87.9(26.8) |
| Total rope on drum ft (m) | 26.2(8) | 55.8(17) | 88.6(27) | 121.4(37) |

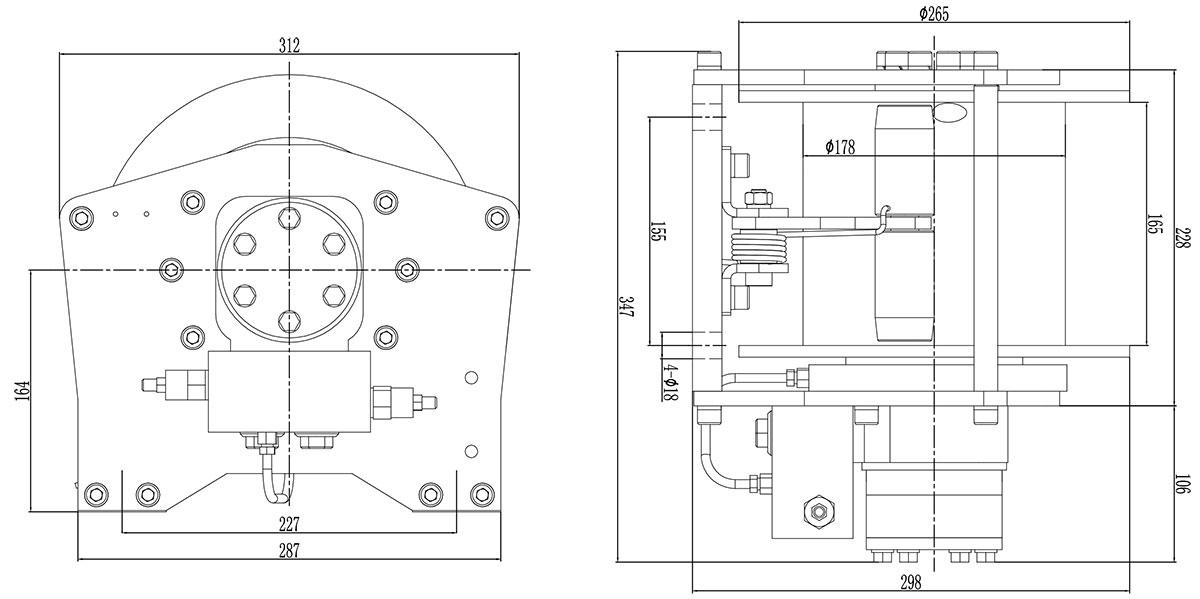

外形尺寸
