RUNVA
HWV 10000
液压绞盘 · HWV 10000
RUNVA HWV 10000 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- This winch meets European EN standard
- Hydraulic brake and balance valve as standard
- Waterproof grade IP67 to avoid rain, dust go into the winch
- Clutch is designed with 180 internal rotation to prevent lateral obstructions
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 10000 lbs (4536 kgs) |
|---|---|
| Stardand | European EN |
| Motor displacement: | 100ml/r |
| Oil flow: | 5~60L/min |
| Pressure | 15Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain | Planetary steel gear |
| Gear reducation ratio: | 17.6:1 |
| Clutch | Air,manual,air&manual optional |
| Waterproof | IP67 |
| Cable(Dia×L): | Ø13/32″×83.7’(Ø10.2mm×25.5m) |
| Drum size(Dia×L): | Ø4.0″×10.0″(Ø102mm×253mm) |
| Mounting bolt pattern: | 14.7″×4.5″(374.2mm×114.3mm) 11.5″×6.7″(291.6mm×171.2mm)8-M10 |
| Net weight: | 112.4lbs/51kgs |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) | layer/Lbs.(kgs) |
| 0 | 3.0(435.1) | 1.3(5) | 3.0(0.9) | 1/10000(4536) |
| 4000 (1814) | 6.8(986.2) | 2.6(10) | 5.9(1.8) | 2/7355(3336) |
| 6000 (2722) | 9.2(1334.3) | 5.2(20) | 11.8(3.6) | 3/6780(3075) |
| 8000 (3629) | 12.0(1740.4) | 10.4(40) | 23.6(7.2) | 4/5711(2591) |
| 10000 (4536) | 15.0(2175) | 15.6(60) | 36.1(11) |

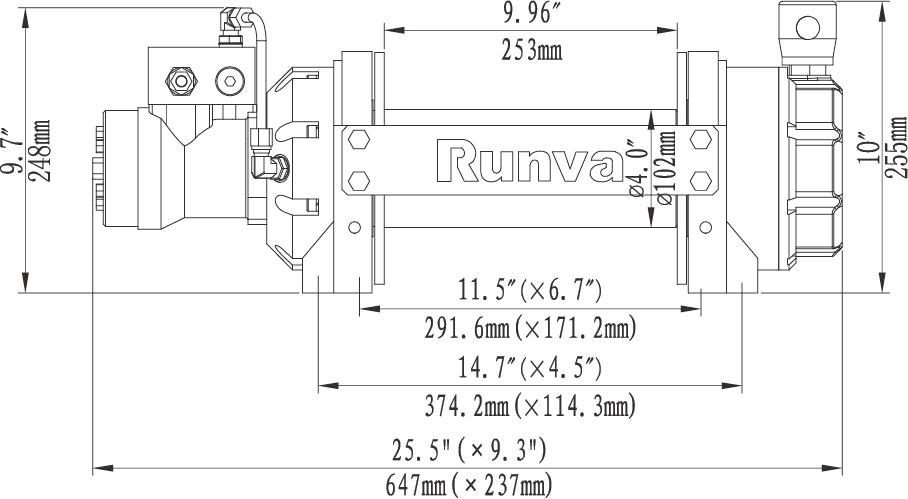

外形尺寸
