HWV 15000
液压绞盘 · HWV 15000
RUNVA HWV 15000 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 15,000 lbs（6,804 kgf）
- This winch meets European EN standard
- Hydraulic brake and balance valve as standard
- Waterproof grade IP67 to avoid rain, dust go into the winch
- Clutch is designed with 180 internal rotation to prevent lateral obstructions
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 15000 lbs (6804 kgs) |
|---|---|
| Stardand | European EN |
| Motor displacement: | 160ml/r |
| Oil flow: | 5~60L/min |
| Pressure | 17.5Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain | Planetary steel gear |
| Gear reducation ratio: | 17.6:1 |
| Clutch | Air,manual,air&manual optional |
| Waterproof | IP67 |
| Cable(Dia×L): | Ø15/32″×86.9’(Ø12mm×26.5m) |
| Drum size(Dia×L): | Ø5.0″×10.5″(Ø127mm×266mm) |
| Mounting bolt pattern: | 12.0″×4.5″(303.5mm×114.3mm) 14.5″×6.7″(368.5mm×171.2mm)8-M12 |
| Net weight: | 184.3lbs/83.6kgs |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) | Ft/min. (M/min.) | layer/Lbs.(kgs) |
| 0 | 2.0(290) | 2.6(10) | 4.2(1.3) | 1/15000(6804) |
| 8000 (3629) | 9.2(1337) | 5.2(20) | 8.5(2.6) | 2/12791(5807) |
| 10000 (4536) | 11.5(1627) | 7.9(30) | 12.4(3.8) | 3/11150(5062) |
| 12000 (5448) | 14.0(2030) | 10.4(40) | 16.7(5.1) | |
| 15000 (6810) | 17.5(2537) | 15.6(60) | 23(7.0) |

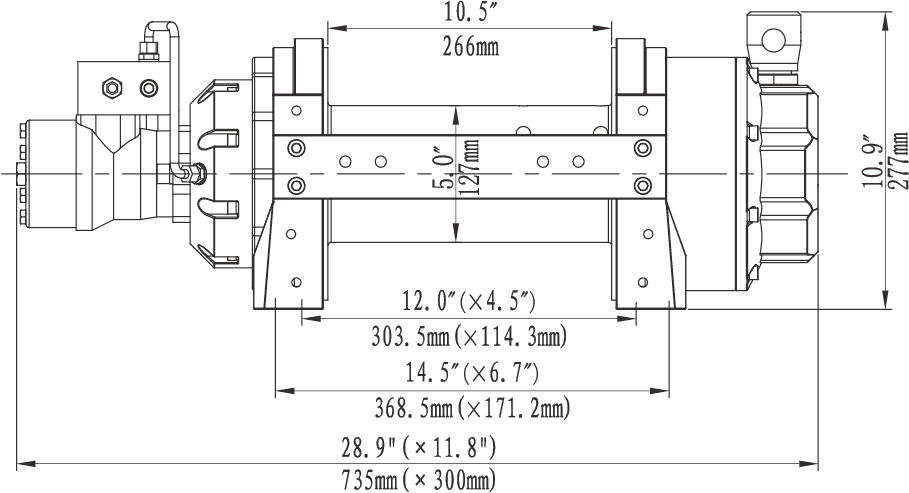

外形尺寸
