RUNVA
HWX 040H
液压绞盘 · HWX 040H
RUNVA HWX 040H 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 9000 lbs (4082 kgs) |
|---|---|
| Motor:permanent magnet | 80ml/r |
| Oil flow | 5~60L/min |
| Pressure | 11.5Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain | 2-stage planetary alloy gear |
| Gear reduction ratio | 23:1 |
| Waterproof | IP54 |
| Cable(Dia×L) | Ø13/32″×65.5’(Ø10.2mm×20m) |
| Drum size(Dia×L) | Ø3.5″×7.6″(Ø88mm×193mm) |
| Mounting bolt pattern | 11.8″×15.16″×11.0″ (300mm×385mm×280mm)8-M12 |
| Net weight | 114.6lbs/52kgs |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Line Speed | Flow | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | Ft/min. (M/min.) | G/min. (L/min.) | layer/Lbs.(kgs) |
| 0 | 3.0(435.0) | 3.6(1.1) | 2.6(10) | 1/9000 (4082) |
| 4000 (1814) | 6.5(942.5) | 7.5(2.3) | 5.3(20) | 2/7452(3380) |
| 6000 (2722) | 8.5(1232.5) | 15.7(4.8) | 10.5(40) | 3/6358(2884) |
| 8000 (3629) | 10.5(1522.5) | 20.0(6.1) | 13.2(50) | |
| 9000 (4082) | 11.5(1667.8) | 24.2(7.4) | 15.8(60) |

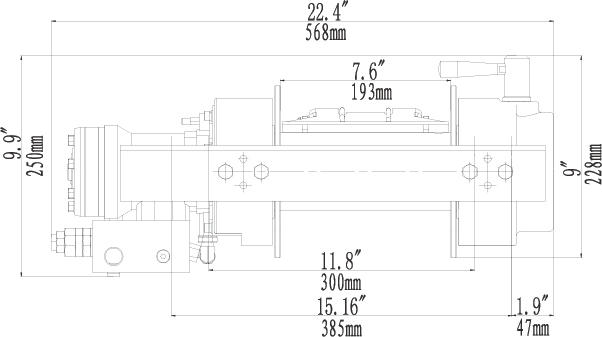

外形尺寸
