RUNVA
HWX 12000
液压绞盘 · HWX 12000
RUNVA HWX 12000 液压绞盘参数与性能数据。
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Full steel reducer gearRunva patent two stage planetary gear reducerSliding geared ring clutchAutomatic screw cone braking actionWireless remote control availableLow oil flow stable working motorVehicle’s exising steering power pump driveDC 12v or DC 24v Power drive optionalRemote control
- Full steel reducer gear
- Runva patent two stage planetary gear reducer
- Sliding geared ring clutch
- Automatic screw cone braking action
- Wireless remote control available
- Low oil flow stable working motor
- Vehicle’s exising steering power pump drive
- DC 12v or DC 24v Power drive optional
- Remote control
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Rated line pull | 12000 lbs (5443 kgs) |
|---|---|
| Motor:permanent magnet | 65ml/r |
| Oil flow | 5～45L/min |
| Pressure | 11Mpa |
| Gear reduction ratio | 28:1 |
| Cable(Dia×L) | Ø13/32″×83.7’(Ø10.2mm×25.5m) |
| Drum size(Dia×L) | Ø2.48″×8.45″(Ø63mm×217mm) |
| Mounting bolt pattern | 10″×4.5″(254mm×114.3mm)4-M12 |
| Net weight | 94lbs/42.8kgs |
性能数据
| PERFORMANCE SPECS (first layer) | ||||
|---|---|---|---|---|
| Line Pull | Pressure | Line Speed | Flow | Pull by layer |
| Lbs.(kgs) | Mpa(Psi) | Ft/min. (M/min.) | G/min. (L/min.) | layer/Lbs.(kgs) |
| 0 | 2.0(290.1) | 1.6(0.5) | 1.3(5) | 1/12000 (5443) |
| 3000 (1361) | 3.3(478.6) | 3.6(1.1) | 2.6(10) | 2/9563(4338) |
| 6000 (2722) | 7.2(1044.2) | 7.5(2.3) | 5.3(20) | 3/7949(3606) |
| 9000 (4082) | 9.2(1344.3) | 13.1(4.0) | 9.2(35) | 4/6801(3085) |
| 12000 (5443) | 11.0(1595.4) | 17.4(5.3) | 11.9(45) |

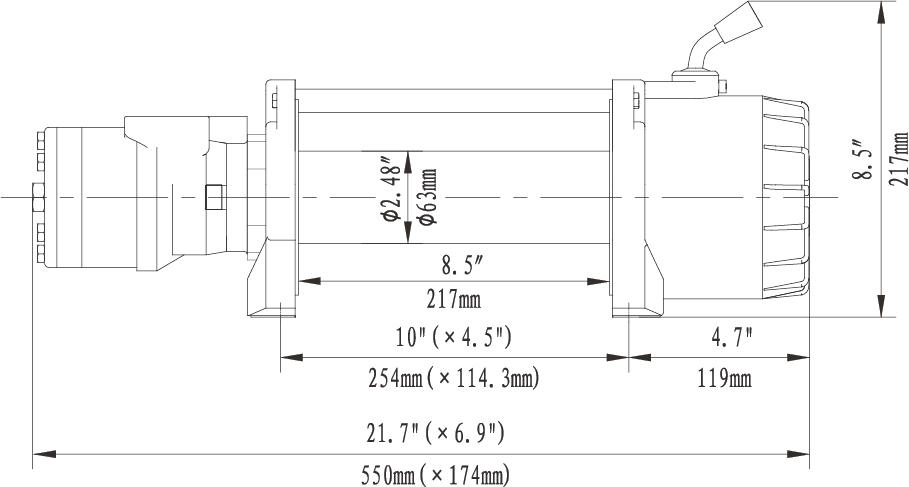

外形尺寸
