WARN
1000 AC 120V Electric Winch
电动绞盘 · 1000 AC 120V Electric Winch
AC Pulling Power For Shops And Indoor Worksites The 1000AC Series 120 volt Winch is portable and has a pull capacity of 1,000 pound. It has a 43 feet wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 1,000 lbs（454 kgf）
- The 1000AC Winch Delivers 1,000 Pounds Of Pulling Capacity
- Limited 1 Year Warranty
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Ideal for use anywhere 120-Volt AC power is available, the WARN® 1000AC winch delivers 1,000 lbs. of pulling capacity. 43’ of wire rope, a long duty cycle and legendary WARN durability make this a tool you can rely on to get the job done.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Portable |
| Recommended Use | Utility |
| Voltage | 120 Volt |
| Motor Horsepower | 0.8 Horsepower |
| Electrical Control Type | Circuit Breaker Protected |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Differential Planetary |
| Gear Reduction Ratio | 261:1 |
| Free Spooling | Yes |
| Brake Type | Self Braking Transmission |
| Line Diameter (IN) | 3/16 Inch |
| Line Length (FT) | 43 Feet |
| Line Material | Steel |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | Pendant Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 3.1 Inch |
| Mounting Pattern Width (IN) | 2-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |
| Max Amp Draw/ Line Pull | 6 Amp Draw/ 1000 Pound |
| Max Line Pull/ Line Speed | 1000 Pound/ 5.5 Feet Per Minute |

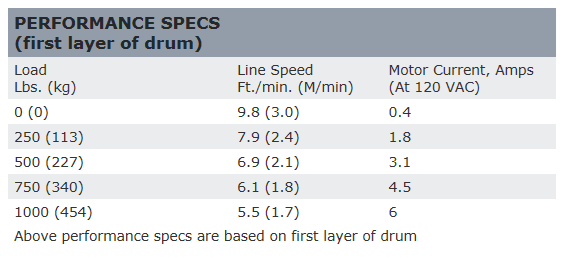

技术图
