1500 AC Utility Winch
电动绞盘 · 1500 AC Utility Winch
This Warn Industries 1500AC Series electric Winch is portable and has a pull capacity of 1,500 pound. It has a 43 feet wire rope. Please note this item not for sale in Canada
牵引绞盘
- 额定拉力
- 1,500 lbs（680 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
An industrial planetary gearing and all-metal housing provides for smooth, reliable operation. With a powerful 0.8-horsepower permanent magnet motor, the winch delivers 1,500 lbs. (680kgs) of pulling capacity. You can now pull or drag just about anything anywhere. A vented motor end cap and externally serviceable brushes provide improved motor cooling, extended run time, and extended motor life.
The WARN 1500AC Utility Winch comes equipped with a 10-foot (3m) power cord which allows the 1500AC to be used wherever a standard 120V AC outlet can be found. The winch is equipped with 43-feet of 3/16' diameter steel rope. And an advanced, sealed pendant remote with 10-foot (3m) lead allows for a great deal of flexibility in use.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Portable |
| Recommended Use | Utility |
| Voltage | 120 Volt |
| Motor Horsepower | 0.8 Horsepower |
| Electrical Control Type | Circuit Breaker Protected |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Differential Planetary |
| Gear Reduction Ratio | 261:1 |
| Free Spooling | Yes |
| Brake Type | Self Braking Transmission |
| Line Diameter (IN) | 3/16 Inch |
| Line Length (FT) | 43 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | Pendant Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 3.1 Inch |
| Mounting Pattern Width (IN) | 2-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Amp Draw/ Line Pull | 9.1 Amp Draw/ 1500 Pound |
| Max Line Pull/ Line Speed | 1500 Pound/ 4.4 Feet Per Minute |

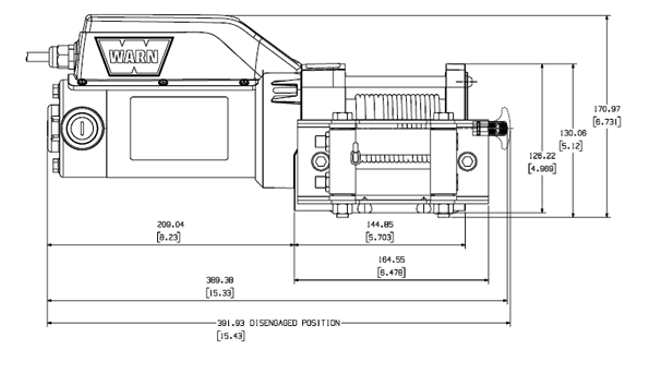

外形尺寸

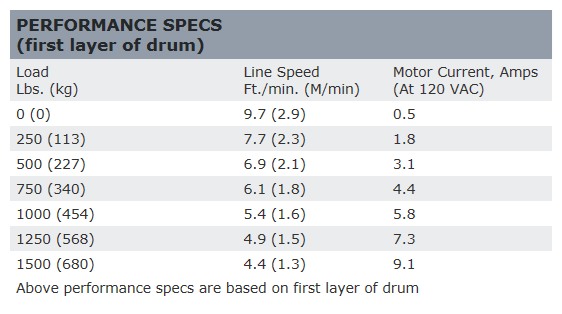

技术图
