16.5ti-S Heavyweight Winch
电动绞盘 · 16.5ti-S Heavyweight Winch
This Warn Industries 16.5ti-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pound. It has a 80 feet Spydura Pro rope. Note: This Winch will require winch mount for proper installation. Please note, the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.
牵引绞盘
- 额定拉力
- 16,500 lbs（7,484 kgf）
- 16,500 lb. capacity
- Includes 18,000 lb capacity EPIC hook
- Large-frame winch architecture mounts feet forward
- Powerful, efficient series-wound motor
- Best-in-class cone brake
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.
规格表
| Specification | Value |
|---|---|
| Rated Line Pull | 16,500 Lbs. (7484 kg) single-line |
| Motor | 12V DC, series wound |
| Electrical controls | Contactor |
| Remote Control | Remote switch, with LED indicator 12’ (3.7m) lead |
| Geartrain | 3-stage planetary |
| Gear ratio | 315:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake | Automatic mechanical cone |
| Drum diameter/Length | 3.5’’/8.2’’ (9cm/21cm) |
| Rope | 16.5ti-s: 3/8’’ x 80’ (9.5mm x 24.3m) Spydura Pro synthetic |
| Fairlead | 16.5ti-s: Aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Finish | Argent gray powder coat |
| Weight | 16.5ti-s: 104 lbs. (47 kg) |
| Warranty | Limited lifetime (mechanical components); seven year (electrical components) |

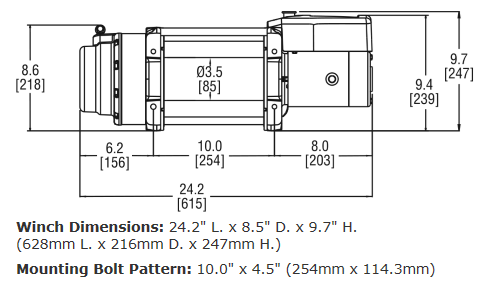

外形尺寸

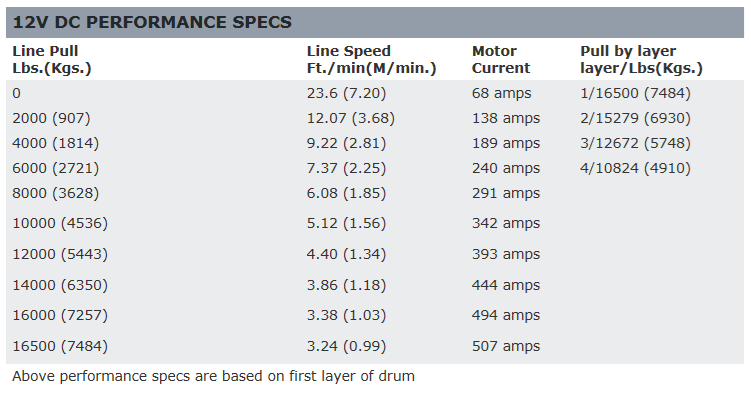

技术图
