2000 DC 12V Electric Winch
电动绞盘 · 2000 DC 12V Electric Winch
This Warn Industries 2000 DC Series 12 is a small 12 volt winch. It is vehicle mounted and has a pull capacity of 2,000 pound. It has a 35 feet wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,000 lbs（907 kgf）
- 2,000 lb. (907 kg) capacity with plenty of power for smaller jobs
- Outstanding duty cycle, durability, and features
- 35' of 3/16" (10.7m of 4.7mm) wire rope with hook and clasp
- Ergonomic, multi-directional clutch lever
- Dynamic braking for great control and holding power
- Limited 1 Year Warranty
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Although this winch might be smaller in size, it's big on value. The WARN 2000 DC Utility Winch has all of the features you'll want, and it's small size allows it to be mounted in tight spots. Designed to pull lighter loads, this winch will help you move more material in less time.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Trailer |
| Voltage | 12 Volt |
| Motor Horsepower | 1.6 Horsepower |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 153:1 |
| Free Spooling | No |
| Brake Type | Self Locking Gear Train |
| Line Diameter (IN) | 3/16 Inch |
| Line Length (FT) | 35 Feet |
| Line Material | Steel |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | 12 Feet Wired |
| Mounting Hole Quantity | 2 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 3.1 Inch |
| Mounting Pattern Width (IN) | Not Applicable |
| Includes Mounting Hardware | Yes |
| Color | Gray |
| Max Line Pull/ Line Speed | 2000 Pound/ 4.2 Feet Per Minute |
| Max Amp Draw/ Line Pull | 80 Amp Draw/ 2000 Pound |

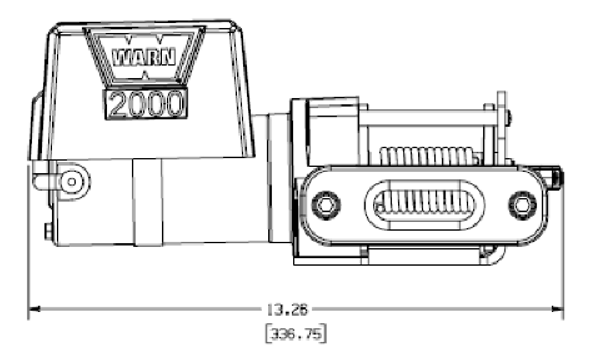

外形尺寸

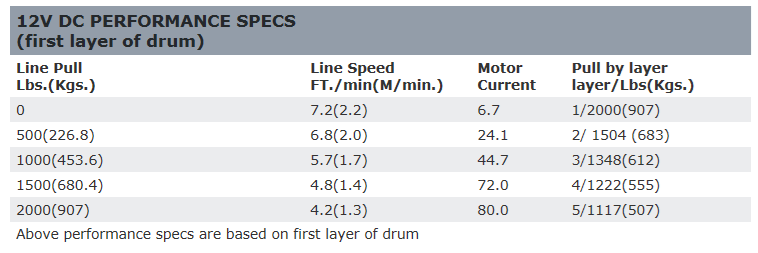

技术图
