WARN
3000 ACI Winch
电动绞盘 · 3000 ACI Winch
This Warn Industries 3000 ACI Series electric Winch has a pull capacity of 3,000 pound. It has a 100 feet wire rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,000 lbs（1,361 kgf）
- With 3,000 Pounds Pulling Capacity
- Limited 1 Year Warranty
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
With a 3,000 lbs. pulling capacity, a TEFC Induction AC motor for a long duty cycle and 100' of 5/16" wire rope, the 3000 ACI just what you need when you need a heavy-hauling AC powered winch. The perfect fixed-mount station winch. CSA approved.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Fixed Mount |
| Recommended Use | Industrial |
| Voltage | 115/ 230 Volt |
| Motor Horsepower | 0.7 Horsepower |
| Motor Type | TEFC Induction |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 216:1 |
| Free Spooling | No |
| Brake Type | Mechanical And Dynamic |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Steel |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | No |
| Remote Type | Drum Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 4 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Gray |
| Max Amp Draw/ Line Pull | 20.9 Amp Draw/ 3000 Pound |
| Max Line Pull/ Line Speed | 3000 Pound/ 8.1 Feet Per Minute |

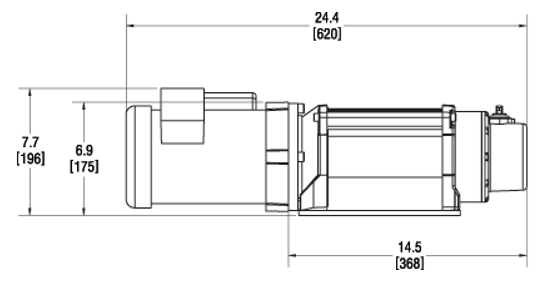

外形尺寸

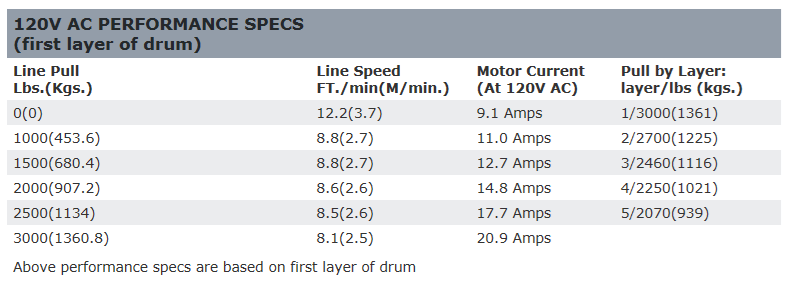

技术图
