4000 DC 12V Electric Winch
电动绞盘 · 4000 DC 12V Electric Winch
This Warn Industries 4000 DC Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 4,000 pound. It has 43' feet of steel winch rope and comes with a 12' corded remote.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 4,000 lbs（1,814 kgf）
- 4,000 lb. (1814 kg) pulling capacity lets you move a variety of heavy objects
- Outstanding duty cycle, durability, and reliability
- 43' of 7/32" (13m of 6mm) wire rope with hook and clasp
- Convenient easy-lift clutch lever
- Dynamic and mechanical braking for excellent control and holding power
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The 4000 DC has heavy-duty pulling power; perfect for loading a heavy vehicle onto a trailer or winching the big loads at work. With durable steel rope, a roller fairlead, and a sturdy remote control, this winch is ready to go to work.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Trailer |
| Voltage | 12 Volt |
| Motor Horsepower | 1.9 Horsepower |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 176:1 |
| Free Spooling | No |
| Brake Type | Mechanical And Dynamic |
| Line Diameter (IN) | 7/32 Inch |
| Line Length (FT) | 43 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | 12 Feet Wired |
| Mounting Hole Quantity | 3 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 2-1/2 Inch |
| Mounting Pattern Width (IN) | 3.1 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Max Amp Draw/ Line Pull | 240 Amp Draw/ 4000 Pound |
| Max Line Pull/ Line Speed | 4000 Pound/ 6.9 Feet Per Minute |

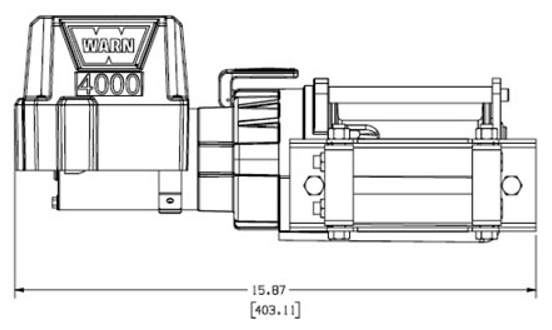

外形尺寸

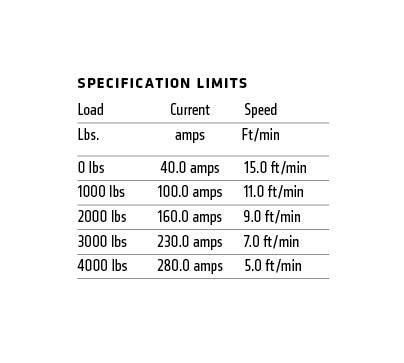

技术图
