WARN
9.5XP-S Winch
电动绞盘 · 9.5XP-S Winch
This Warn Industries 9.5xp Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,500 pound. It has a 100 feet synthetic rope. Note: This Winch will require winch mount for proper installation.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,500 lbs（4,309 kgf）
- Now available with WARN Spydura™ synthetic rope with matte aluminum hawse fairlead
- Extreme-duty winch sealing. Enables superior water resistance
- Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
- Remote-mount, next-generation control box allows for various mounting options
- High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
- Limited lifetime warranty (geartrain), 7 year warranty (electrical)
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power and the fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 6 Horsepower |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 156:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |
| Max Line Pull/ Line Speed | 9500 Pound/ 6.2 Feet Per Minute |
| Max Amp Draw/ Line Pull | 482 Amp Draw/ 9500 Pound |

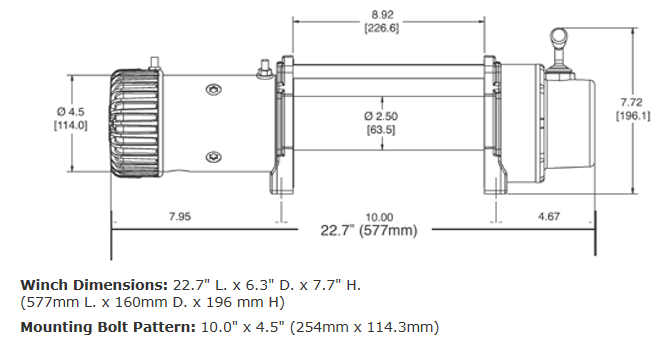

外形尺寸

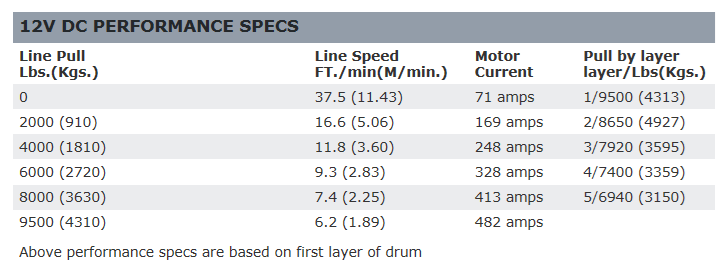

技术图
