9.5XP Winch
电动绞盘 · 9.5XP Winch
This Warn Industries 9.5xp Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,500 pound. It has a 100 feet wire rope. Note: This Winch will require winch mount for proper installation.
牵引绞盘
- 额定拉力
- 9,500 lbs（4,309 kgf）
- High-output parallel series wound winch motor is the strongest and most durable in the industry
- Exclusive brake design. Provides superior operator control when winching
- 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
- Remote control with 12' (3.7m) lead
- 100' of steel winch rope
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The fast, powerful Warn 9.5XP extreme performance is designed for the serious off-roader who demands a Winch that will perform under the most extreme conditions in the world. With 9,500 Pound. Of pulling power and the fastest line speed of any Warn Winch under load, the 9.5XP delivers extreme performance that eats up the competition even in competition. The 9.5XP Winch features the high output parallel series wound Winch motor that's the strongest and most durable in the industry. The 6 Horsepower motor, 3 stage planetary gearing and extended duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor, and end housing gaskets deliver extreme-duty water resistance. A high gloss, chip resistant powder coat finish over primer coated alloys affords superior corrosion resistance
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 6 Horsepower |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 156:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 5/16 Inch |
| Line Length (FT) | 100 Feet |
| Line Material | Steel |
| Fairlead Type | Roller |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Gray |

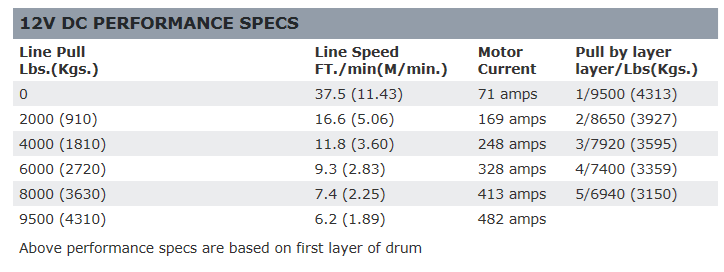

| Max Line Pull/ Line Speed | 9500 Pound/ 6.2 Feet Per Minute |
| Max Amp Draw/ Line Pull | 482 Amp Draw/ 9500 Pound |

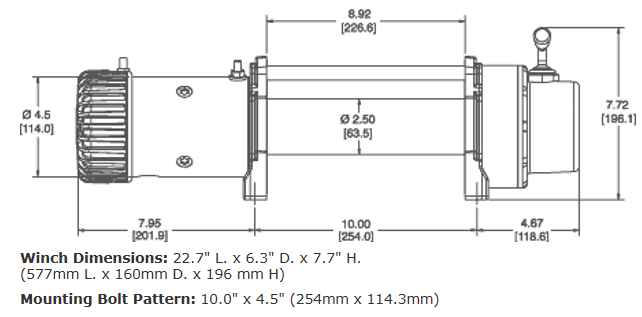

外形尺寸
技术图
