DC2000 Mid Frame 24V Hoist
电动绞盘 · DC2000 Mid Frame 24V Hoist
This Warn Industries Industrial Hoist 24 volt electric Winch is portable and has a pull capacity of 2,000 pound. It comes without rope.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,000 lbs（907 kgf）
- Powerful Permanent Magnet DC Motor With Robust Sealing
- Permanent Grease Lubrication
- Compact Midsize Frame With Integrated Tie Bars For Easy Installation
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on a compact midsize framed with integrated tie bars that's easy to install.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Recommended Use | Industrial |
| Voltage | 24 Volt |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 261:1 |
| Free Spooling | No |
| Brake Type | Automatic Cone Brake |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | No |
| Remote Type | No Remote |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 6 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Amp Draw/ Line Pull | 54 Amp Draw/ 2000 Pound |
| Max Line Pull/ Line Speed | 2000 Pound/ 12.8 Feet Per Minute |

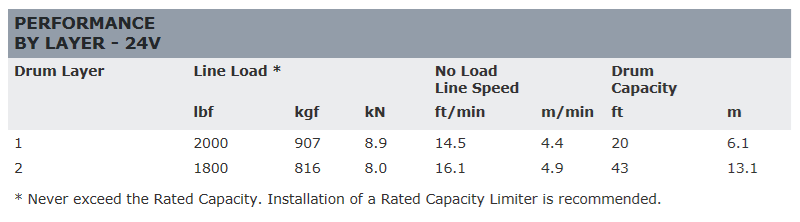

技术图
