WARN
DC4000 24V Industrial Hoist
电动绞盘 · DC4000 24V Industrial Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 4,000 lbs（1,814 kgf）
- Powerful Series-Wound DC Motor With Robust Sealing
- Large-Frame Design With A Cast Aluminum Drum Provides Plenty Of Wire Rope Capacity
- Durable Powder-Coated Finish Stands Up To The Elements
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The DC4000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC4000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Recommended Use | Industrial |
| Voltage | 24 Volt |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 315:1 |
| Free Spooling | No |
| Brake Type | Disc Brake |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | No |
| Remote Type | No Remote |
| Mounting Hole Quantity | 8 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 8 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Black |
| Max Amp Draw/ Line Pull | 195 Amp Draw/ 4000 Pound |
| Max Line Pull/ Line Speed | 4000 Pound/ 16.4 Feet Per Minute |

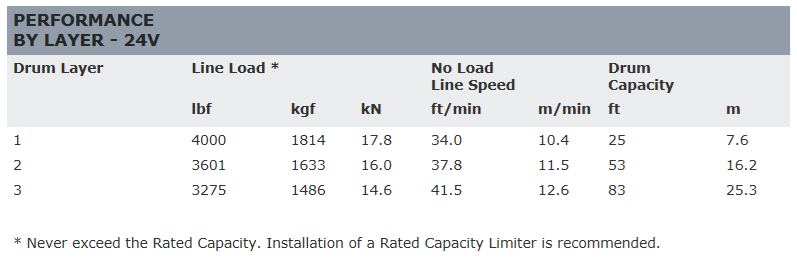

技术图
