DC800 12V Industrial Hoist
电动绞盘 · DC800 12V Industrial Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 800 lbs（363 kgf）
- Combines A Powerful Permanent Magnet DC Motor With Robust Sealing And Our Proven 3-Stage All Metal Gear Train
- Durable Powder Coated Finish Stands Up To The Elements And Looks Great
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The DC800 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC800 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy.
规格表
| Specification | Value |
|---|---|
| Type | Electric |
| Recommended Use | Industrial |
| Voltage | 12 Volt |
| Motor Type | Permanent Magnet |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 154:1 |
| Free Spooling | No |
| Brake Type | Disc Brake |
| Line Diameter (IN) | No Rope |
| Line Length (FT) | No Rope |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Conforms To J706 Standards | No |
| Remote Type | No Remote |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 6-3/4 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Max Line Pull/ Line Speed | 800 Pound/ 13 Feet Per Minute |
| Max Amp Draw/ Line Pull | 53 Amp Draw/ 800 Pound |

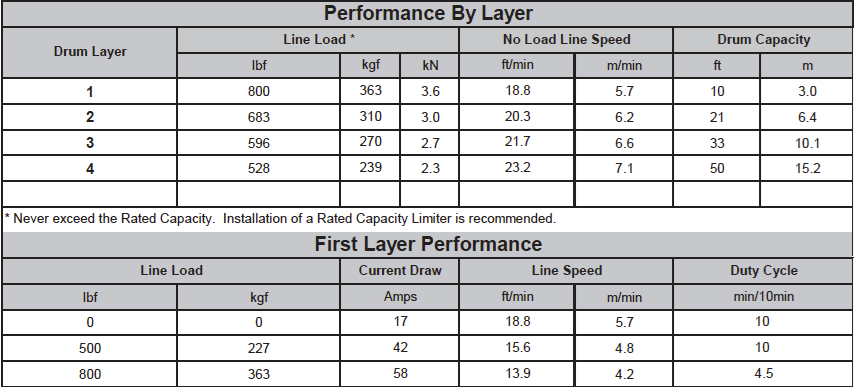

技术图
